نام محصول:
دریچه
نام انگلیسی:
Plunger valve GV
برند:
Elcometer
مشخصات:

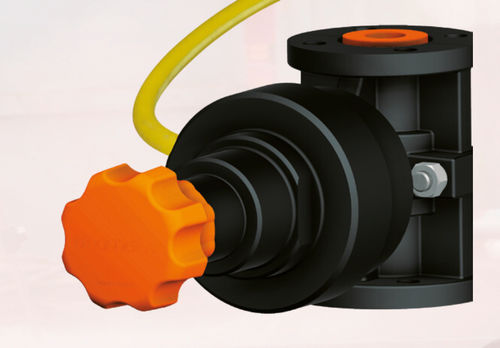

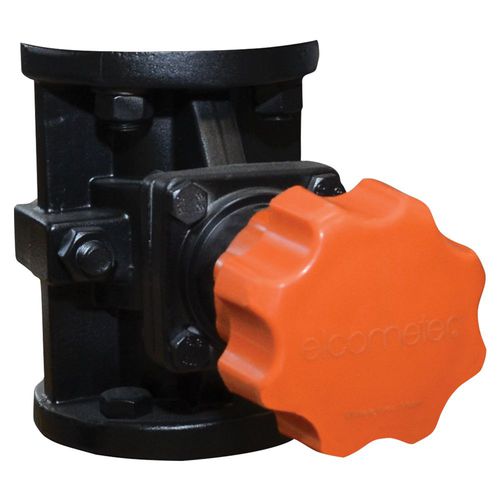

The Elcometer GV General Valve ensures precise abrasive metering for an even, regulated flow which reduces wastage.
The Elcometer General Valve is highly durable, easy to use and fast to service, providing enhanced levels of efficiency across a wide range of abrasive blasting projects.
The valve’s fine tuning mechanism enables precision control of abrasive flow which can be adjusted even whilst blasting to save downtime.
Suitable for a wide range of media types, its Elcometer-engineered design prevents the valve body from coming into the contact with the abrasive stream to ensure a long life span. And, as the elcoTOUGH™ Rubber Liner lasts up to three times longer than market alternatives, less frequent maintenance regimes are needed.
Available in two versions, owners of an Elcometer 1020 Blast Machine can opt for the Mini General Valve. Alternatively, the larger 25mm (1″) General Valve can be installed to most Blast Machines available on the market.
Precise Abrasive Metering
When developing Elcometer’s General Valve, our design team recognised that a finer thread would provide blasters greater control over abrasive fed into the mixer ‘T’. As such, they set out to improve upon the industry standard of coarser, ‘corkscrew style’ threads.
The outcome of this was increased precision, with operators using the General Valve being able to minimise the amount of abrasive used in the blast process, therefore saving money and reducing cleaning costs.
Ideal for Aggressive Abrasives
Accurate, wear resistant and suitable for all abrasive media types, the Elcometer General Valve is perfect for use with agressive abrasive materials such as steel shot, grit or aluminium oxide.
توضیحات:
Type
plunger
Operation
manual
Function
dosing
Applications
abrasive
DN
15 mm(0.591 in)
Pressure
Min.: 2.5 bar(36.3 psi)Max.: 15 bar(217.6 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 60 °C(140 °F)
