نام محصول:
دریچه
نام انگلیسی:

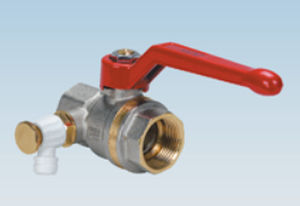

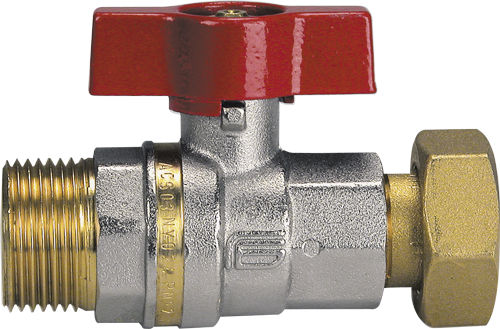

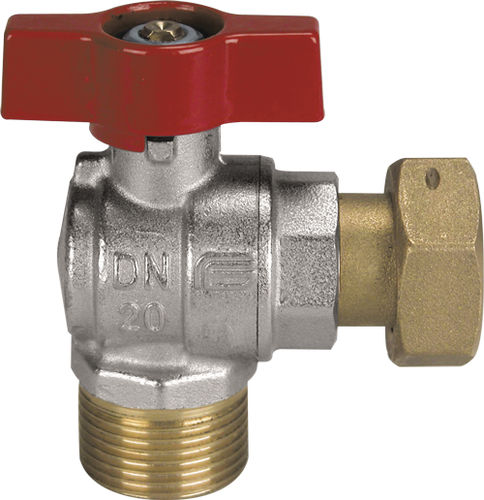

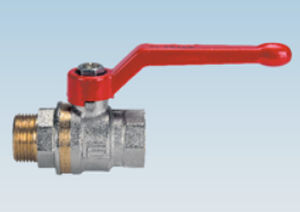

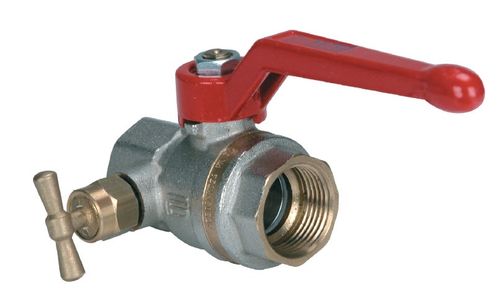

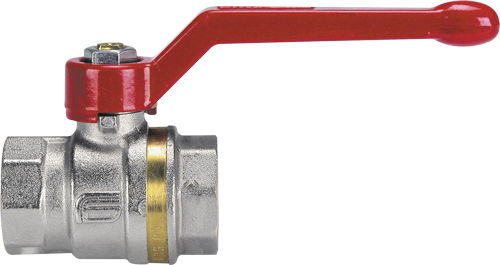

Ball valve ASTER ACS series
برند:
EFFEBI
مشخصات:
TECHNICAL FEATURES:
Temperature limits: for fluids from –15°C to +110° C
Pressure limits: for fluids from at 40 bar
SPECIFIC FEATURES:
Bore: full.
Stem: anti blow out.
Seats: high resistance virgin PTFE.
Upper seal: 3 seals:
1 PTFE ring – high pressure
2 O-Ring – low pressure.
• The ASTER ACS series has been designed to comply with future European regulations about drinkable water. The nickel free inside surface and all its components make the valve suitable for drinking water.
Application fields:
The ASTER ACS series is used in drinking water distribution, cooling and heating systems and pneumatic applications.
Threaded end connections:
• Standard female according to UNI ISO 228/1.
Operation devices:
Sluminium lever, steel lever, stainless steel lever, aluminium T-handle.
Available colours: red.
All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
توضیحات:
Type
ball
Operation
manual
Function
purge, distribution, drain
Media
for water
Body$
threaded
Applications
heating, air conditioning
Other characteristics
standard
DN
Min.: 8 mm(0.315 in)Max.: 100 mm(3.937 in)
Pressure
40 bar(580.2 psi)
Temperature
Min.: -15 °C(5 °F)Max.: 110 °C(230 °F)
