نام محصول:
دریچه
نام انگلیسی:

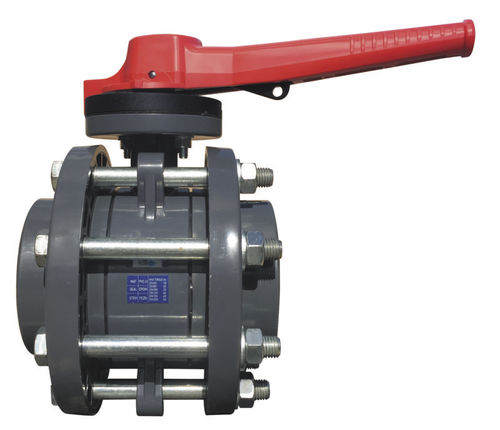

Butterfly valve PROFLOW® P
برند:
Effast
مشخصات:
High performance butterfly valve for closing or flow regulating applications. Greater flow rates and reduced pressure drop across the valve, along with fine control, integral seal and ease of actuation means the PROFLOW butterfly valve is ideal for high performance applications.
Technical features:
Patented High Flow offset disc with a unique design to allow for a greater flow rate and lower pressure drop in comparison to traditional discs.
The High Flow offset disc allows a linear response resulting in greater control and excellent flow regulation
PVC-U body is machined to guarantee a secure seal.
Available wtih EPDM or FKM seals
EPDM,FKM or EPDM NSF certified main gasket.
Stem in Stainless Steel AISI 420 B or AISI 316
Lockable handle.
Regulating plate with 19 positions between 0° and 90°, for fne readjustment of the flow rate.
Suitable for installation between EN/ISO/DIN, ANSI and JIS flanges
Fit for contact with potable water
Compliant with the requirements of Annex III, Module A2 of the Pressure Equipment Directive 2014/68/EU.
توضیحات:
Type
butterfly
Operation
manual, lever
Function
for control, shut-off, flow-control
Media
for water, for chemical products
Body$
flange, wafer, lockable
Applications
for industrial applications, chemical, for liquids, for swimming pool
Material$
EPDM, PVC-U, stainless steel
Other characteristics
ISO, ANSI, DIN, high-performance, high-flow
DN
Min.: 65 mm(2.559 in)Max.: 200 mm(7.874 in)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 60 °C(140 °F)
Flow rate
Min.: 153 m³/h(5,403.14 ft³/h)Max.: 2,371 m³/h(83,731.07 ft³/h)
