نام محصول:
دریچه
نام انگلیسی:

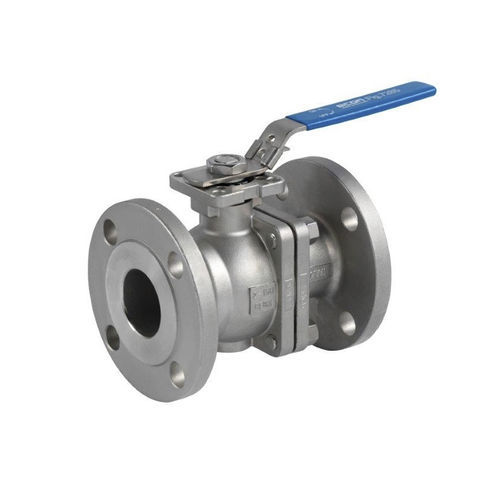

Ball valve 10E10 series
برند:
Econ Brand Valves
مشخصات:

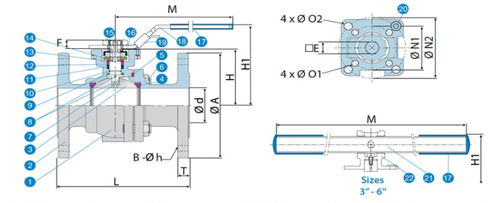

The Econ® 10E10 Series is a two piece, full port, flanged end ball valve with an ISO 5211 compliant direct mount actuation pad. The 10E10 is available in sizes ranging from ½” to 8” with ASME Class 150 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and support a variety of seat materials.
CF8M and WCB Bodies/316SS Trim
Fire Safe to API 607 6th Edition
Built-in ISO 5211 Mounting Pad for Easy Automation
ATEX 94/9/EC (Ex II 2 G-D EX-c II) Anti-static Design
TFM 1600 Seat Material (PTFE, RTFE, TFE/SS Options)
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
TA-Luft (VDI 2440, Sec. 3.3.1.3) Certified Live-loaded
Stem Packing
Lockable Lever Handle or “T” Handle
IEC 61508, SIL 2 capable
30° & 60° V-Notch Optional Control Ball
Standards
Design: ASME B16.34, API 608
Fire Safe: API 607, ISO 10497
Face to Face: ASME B16.10
Wall Thickness: ASME B16.34
End Flange: ASME B16.5
Inspection and Testing: API 598
توضیحات:
Type
ball
Operation
lever
Function
for control
Body
seat, lockable, stainless steel, carbon steel, PTFE
Applications
chemical, flange, for the gas industry, for oil industry applications, for storage tanks, for OEM
Other characteristics
ISO, anti-static, ATEX
DN
Max.: 203.2 mm(8 in)Min.: 12.7 mm(0.5 in)
