نام محصول:
دریچه
نام انگلیسی:

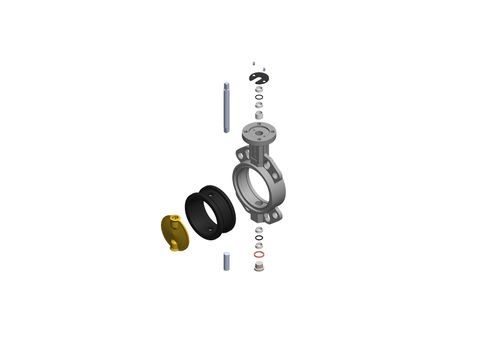

Butterfly valve V101
برند:
Doruk Endustri Ltd.
مشخصات:
Butterfly valves, since their invention in 1960’s became one of the most demanded flow control elements in industrial and domestic flow control applications due to their light weight, low pressure loss, 100% leak free operation, easy and economic automation capabilities.
Beside the soft seat applications, development of PTFE seats and metal seats of double eccentric high performance valves today,butterfly valves are used from basic water applications to industrial applications and highly corrosive severe service applications
Butterfly valves have wide range of applications in water, sea water, steel, food, paper, chemical, petrochemical and all HVAC and general industrial flow process controls.
توضیحات:
Type
butterfly
Operation
manual, electrically-actuated
Function
flow control
Media
for water
Body$
wafer
Applications
industrial, for the chemical industry, for the food industry, process, HVAC, for the petroleum industry
Material$
metal, PTFE, stainless steel
Other characteristics
high-performance
DN
Min.: 25 mm(0.984 in)Max.: 600 mm(23.622 in)
Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)
Temperature
Min.: -30 °C(-22 °F)Max.: 200 °C(392 °F)
