نام محصول:
دریچه
نام انگلیسی:

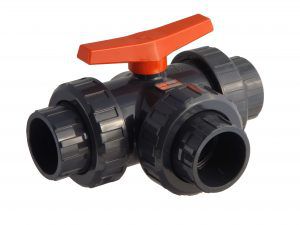

Ball valve
برند:
DIVATEC,SL
مشخصات:
• Materials -PVC-U, PP
• Together EPDM, FPM
• PN10
• Step of the ball in T or L

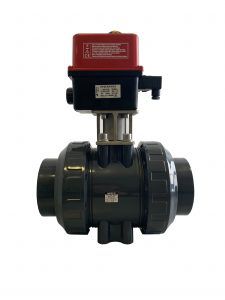

• Hand lever or with pneumatic actuator or with electric motor 230V / 24V

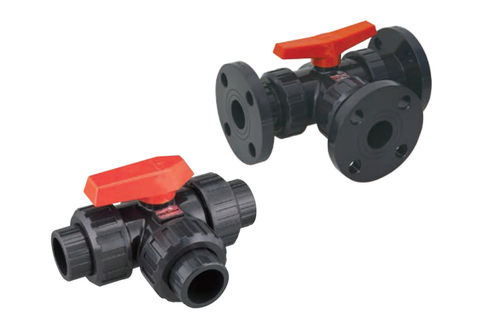

• Gluing, soldering or socket connections, with DIN / ANSI flange, threaded BSP or NPT
Advantage
Seat, torus and ball, interchangeable
Wide connection possibilities
Applications
Construction of chemical facilities
Water treatment
Use
To cut pipe systems
Fluids
Neutral media free of solids and aggressive liquid or gaseous media if the valve components that contact the media are resistant to the service temperature according to the Divatec resistance list.
توضیحات:
Type
ball
Operation
manual, pneumatically-operated, electrically-operated
Body$
threaded
Applications
for the chemical industry, flange, for water treatment
Material$
PVC, PP
Number of channels
3-way
Other characteristics
DIN
DN
Min.: 20 mm(0.787 in)Max.: 63 mm(2.48 in)
Pressure
10 bar(145 psi)
