نام محصول:
دریچه
نام انگلیسی:

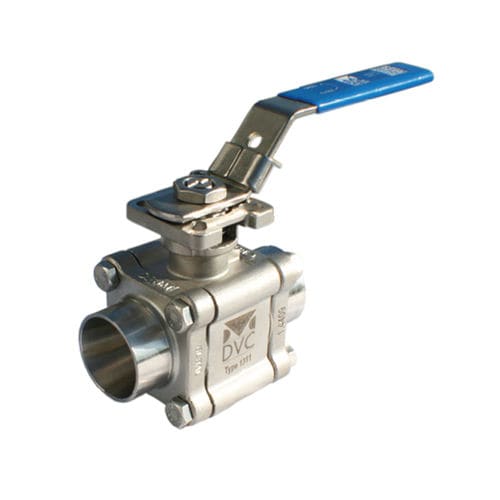

Ball valve 1311
برند:
Dansk Ventil Center A/S
مشخصات:
3-pcs. ball valve with ISO mounting top for mounting of actuator without use of bracket. Antistatic stem with pyramid segment. Maintenance free stuffing box. Available as control valve.
(Option: FDA – Firesafe)
EU1935 – ATEX – TA-luft – SIL
توضیحات:
Type
ball
Operation
lever
Body
female, 3-piece, stainless steel
Other characteristics
ISO, anti-static, ATEX, fire-safe
DN
Min.: 8 mm(0.315 in)Max.: 100 mm(3.937 in)
Pressure
69 bar, 100 bar, 125 bar(1,000.8 psi, 1,450.4 psi, 1,813 psi)
Temperature
Min.: -38 °C(-36 °F)Max.: 220 °C(428 °F)
Flow rate
Min.: 7 m³/h(247.2 ft³/h)Max.: 877 m³/h(30,970.96 ft³/h)
