نام محصول:
دریچه
نام انگلیسی:

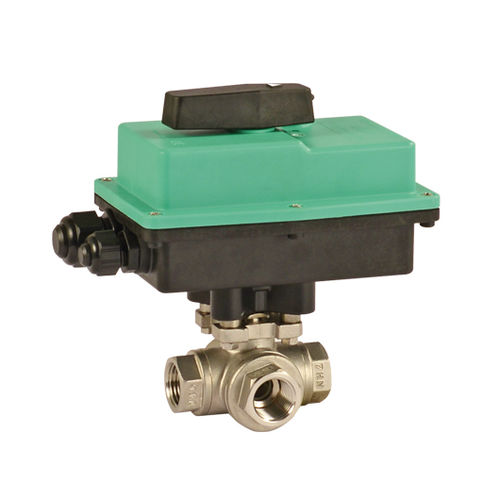

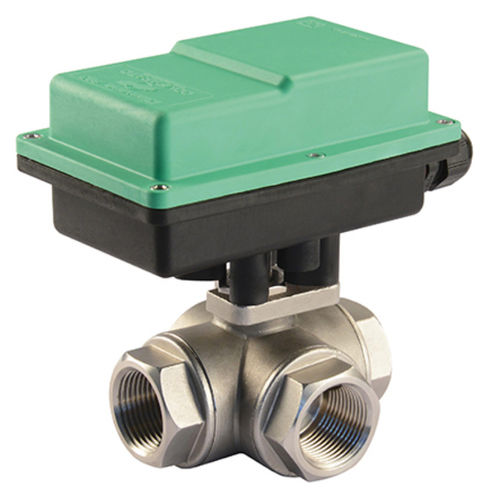

Ball valve DY2 series
برند:
Comparato Nello S.r.l.
مشخصات:
DIAMANT PRO MOTORISED VALVE – 3 WAY FFF AISI 316
ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection
Operating time: 35 sec for 90° rotation – 11Nm
• – open and closed hydraulic Systems
• – drinking water Systems, with suitable valve body
• – Systems using alternative energy
• – thermal solar Systems
• – industrial Systems in general, using hot and cold fluids
• – automation Systems
ACCESSORIES UPON REQUEST
• – Actuator override. to activate the valve in case of emergency or black-out (not available for 4 and 12-second version).
• – One additcnal opening feedback microswitch (free contact diverter).
Example of use: notification of opening. pump relay actuation, boiter control. notification to PLC. etc.)
• – One additcnal dosing feedback microswitch (free contact diverter).
Example of use: notification of closing. relay actuation, notification to PLC. etc.
• – Insulation spacers with and without manual override (see “Valve bodies” section).
• – Anti-condensation résistance, for preventing the risk of condensation inside the actuator.
• – Cable gland PG 13.5.
توضیحات:
Type
ball
Operation
electrically-actuated
Function
for control, diverter, dosing
Media
for water
Body$
female-female, IP67
Applications
industrial, heating
Material$
stainless steel
Number of channels
3-way
Associated function
reducing
Other characteristics
emergency
DN
10 mm, 15 mm(0.394 in, 0.591 in)
Pressure
64 bar(928.2 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 110 °C(230 °F)
