نام محصول:
دریچه
نام انگلیسی:
Gate valve
برند:
China MED Valve Co., Ltd.
مشخصات:

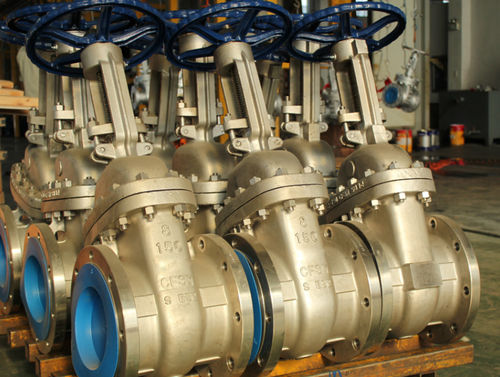

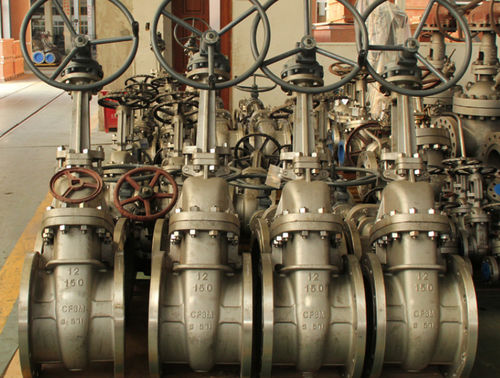

Stainless Steel Gate Valve Supplier: SS Gate Valves, 1-1/2-48 Inch, CL150-CL2500, API 600, ASME B16.34, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M.
Med Stainless Steel Gate Valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds. Extensive baseline laboratory testing (static and cycle testing) has been performed establishing critical design parameters necessary to achieve low emission sealing in the Med stem packing seal area and in the bonnet gasket sealing area, In-house testing procedure has been developed and is periodically performed to ensure that standard product design and manufacturing criteria consistently result in the Med Stainless Steel Gate Valve meeting a maximum of 100 ppm VOC leakage prior to shipment.
Med Stainless Steel Gate Valves are with main Features as below:
Pressure Ratings: ANSI Class 150-2500 LB.
Standards compliance: API 600, ASME B16.34 or equivalents.
Materials: ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, SS 304, SS 316, SS 304L, SS 316L and etc.
Ends Connections: Flanged (FF, RF, RTJ) to international standards.
OS & Y, Outside Stem and Yoke.
Metal-sealed (API Trim CL2, CL10, CL12 and etc.).
Optional Locking Device or Stem Extension.
توضیحات:
Type
gate
Operation
with handwheel
Media
for water, for chemical products, petroleum
Body$
flange
Applications
for the chemical industry, for the petroleum industry, for shipbuilding, laboratory, for water treatment, power line
Material$
stainless steel, cast steel
Other characteristics
ISO, ANSI, full-flow, locking
DN
Min.: 1.5 inMax.: 48 in
