نام محصول:
دریچه
نام انگلیسی:
Gate valve FLS-Frac
برند:
CAMERON
مشخصات:

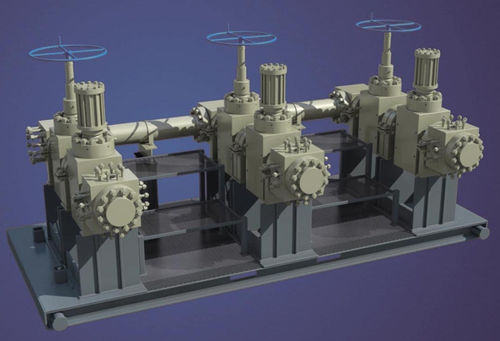

Cameron frac valves have earned a reputation for quality and reliability. Gate valves in frac trees and manifolds frequently flow and control high-pressure, high-volume, abrasive fracturing fluids for days—and even weeks. Given the erosive, corrosive, and sometimes sour nature of typical fracturing and flowback fluids, these valves are trimmed for maximum corrosion and erosion protection and feature
corrosion-resistant alloy (CRA) inlay in seat pockets and ring grooves
zero-chamfer flowbores to mitigate turbulence and hence erosion
two ports for flushing and greasing the valve body cavity.
Because of these features and the industry’s most stringent maintenance program, which can include cleaning, disassembly, inspection, reassembly, and testing before valves returned from the field are assigned to the next project, Cameron frac valves provide three times more uptime compared with other suppliers, minimizing NPT and related costs.
Choose the gate valve that best suits your fracturing program

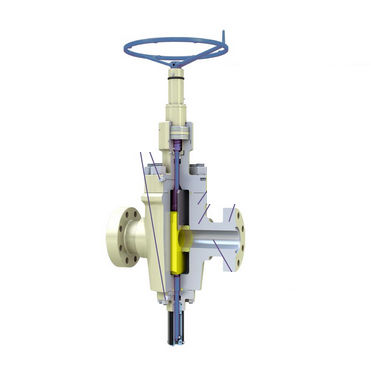

Designed as a manual valve for high-pressure applications, the FLS-R-Frac large-bore HP fracturing API 6A slab-style gate valve is a heavy-duty, reliable gate valve for hydraulic fracturing. It reduces exposure to potential erosion and contamination associated with the midrange position because it quickly cycles from fully closed to fully open.
The FLS-DA2-Frac API 6A double-acting actuated gate valve offers all the same metal sealing features, with the addition of a double-acting hydraulic actuator for fast, positive, remote actuation. It remains in position should hydraulic power failure occur.
توضیحات:
Type
gate
Operation
with handwheel, hydraulically-operated
Function
flow control
Body$
seat, manifold
Applications
for industrial applications
Material$
metal
Fluid specification
for abrasive fluids
Other characteristics
high-pressure, corrosion-resistant, bidirectional, double-acting, heavy-duty, for abrasive fluids
DN
Min.: 1.813 inMax.: 7.063 in
Pressure
10,000 psi, 15,000 psi
