نام محصول:
دریچه
نام انگلیسی:

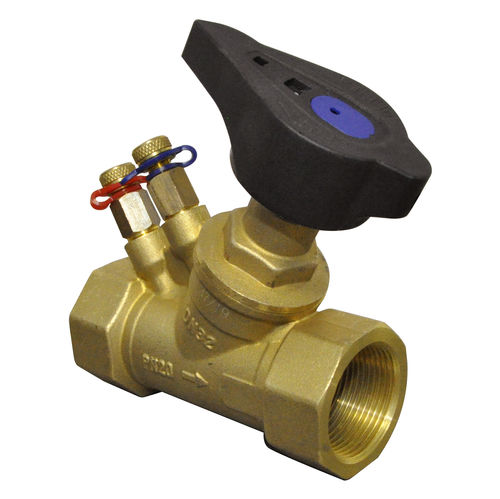

Plug valve EKOFLUX SVO
برند:
Brandoni
مشخصات:
The valves in the series EKOFLUX SVO balance the flow in main circuits or single sections of heating or conditioning plants.
They allow correcting irregularities in the supply of the single users (irregularities which might cause noise and damage the components of the plant) and, as a result, improve environmental comfort and optimize energy consumption.
They perform shut-off and measuring functions.
The continuous presetting function allows controlling the loss of pressure and of the flow rate.
They can be installed indifferently on the supply piping and on the return piping.
Ekoflux SVO is a female/female threaded variable orifice balancing valve available in the dimension range of DN ½” – 2” .
Accessories
Electronic instrument for measuring the differential pressure, flow rate and balancing of the circuit.
توضیحات:
Type
plug
Operation
hand
Function
shut-off
Media
for water
Body$
threaded
Applications
for heating, HVAC
Material$
brass
Associated function
balancing
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
Min.: 0 bar(0 psi)Max.: 20 bar(290.1 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 120 °C(248 °F)
