نام محصول:
دریچه
نام انگلیسی:
Butterfly valve L9 series
برند:
Brandoni
مشخصات:

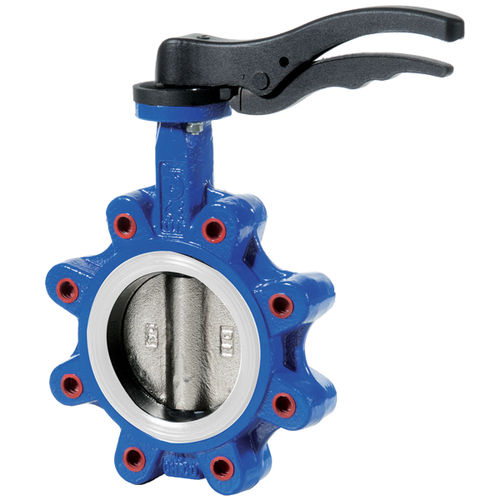

The shut-off LUG butterfly valves in Series L9, with a centred Disc and LUG type body, are made of ductile iron, manufactured in accordance with severe product norms and in conformity to EN ISO 9001.
These valves are suitable for heating and conditioning (HVAC), water treatment and water distribution, industrial applications, agricultural purposes, for compressed air, gas, oils and hydrocarbon.
(Please ensure the choice of the corresponding item) YES: for in line and end of line installation with frequent actuation; the integrated support, in accordance with ISO 5211, allows easy mounting of a wide range of actuators and drives.
They are suitable for choking and regulating the flow.
NO: for steam.
Accessories Actuators
Extension for main water system connection
Position indicator and padlocking for gear box

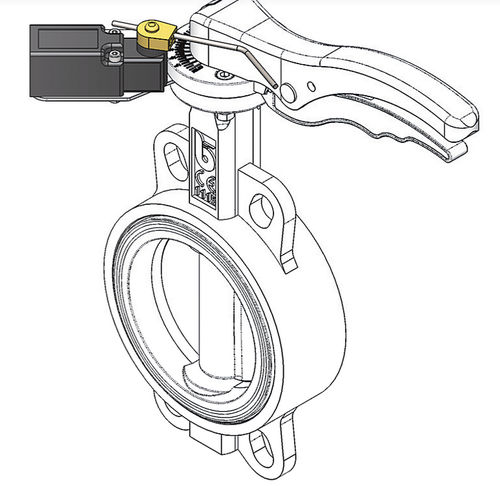

Micro-switch for gear box

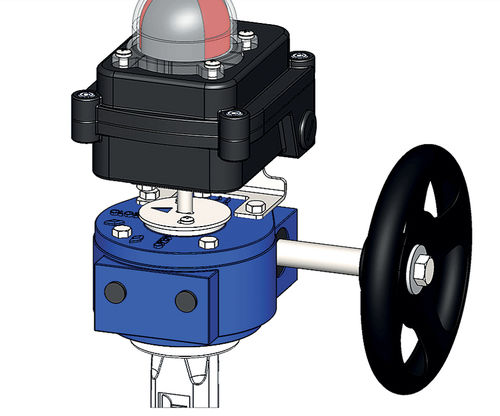

Kit: micro-switches for ON/OFF position indicator

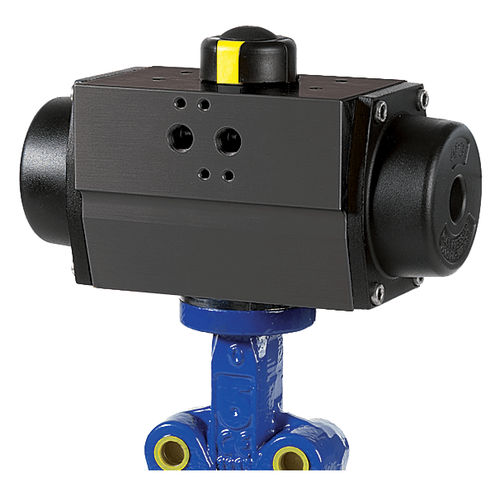

Double acting and single acting pneumatic actuators
On request: micro-switches, position indicators
Electric actuators

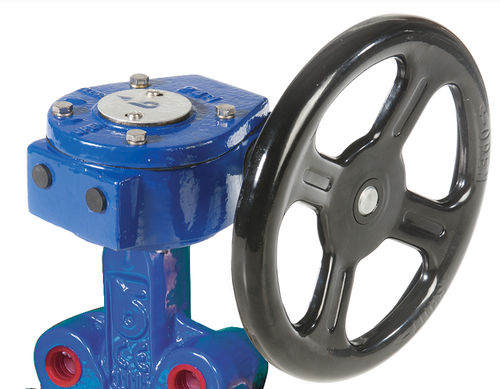

Gear box
Chain driven control
توضیحات:
Type
butterfly
Operation
lever, with handwheel, pneumatic, electric
Function
shut-off, distribution
Media
for water, for oil, for hydrocarbons, for compressed air
Body$
lug type
Applications
industrial, for heating, HVAC
Other characteristics
ISO
DN
Min.: 25 mm(0.984 in)Max.: 400 mm(15.748 in)
Pressure
16 bar(232.1 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 150 °C(302 °F)
