نام محصول:
دریچه
نام انگلیسی:
Ball valve 04.1
برند:
Brandoni
مشخصات:
The valves in the 04.1 series are three-way, diverter ball valves made of cast iron, with floating ball, manufactured in accordance with the most severe product standards and the quality management of ISO 9001. They are available in the following versions:
T4 > with “T”-shape flanges (90°)

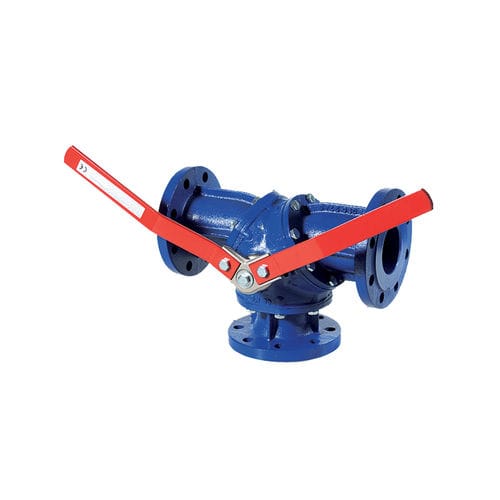

Y4 > with “Y”-shape flanges (120°)
In all positions, the three way valve guarantees the connection to the atmosphere or to a security pipe, with progressive distribution (TRANSFLOW); for this reason, while one line is closed, the other two lines will be fully open, and as a result, any incorrect alignment resulting in the choking of the bore of one of the lines will lead to the bore of the others being increased.
Suitable for heating and conditioning (HVAC), district heating, distribution and treatment of water, industrial applications, agricultural applications, for compressed air processing, oils and hydrocarbons. (Please ensure the choice of the corresponding item)
YES: for installation in line and end of line, for services with frequent actuation, suitable for installing a wide range of actuators.
NO: for steam, for choking and regulation of the flow.
Accessories

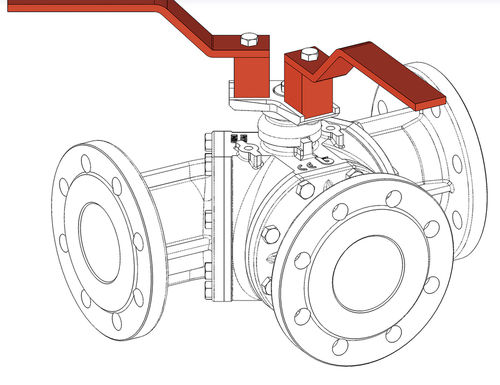

Lever with extension for thermal insulation

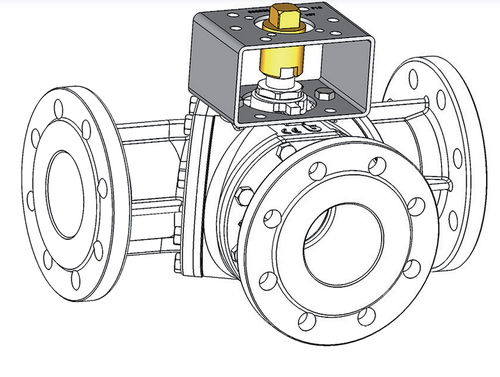

Kit ISO 5211 flange for installation of actuators
Actuators

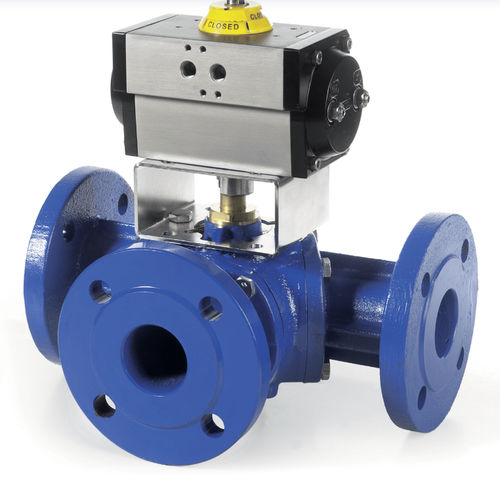

Double acting and single acting pneumatic actuators

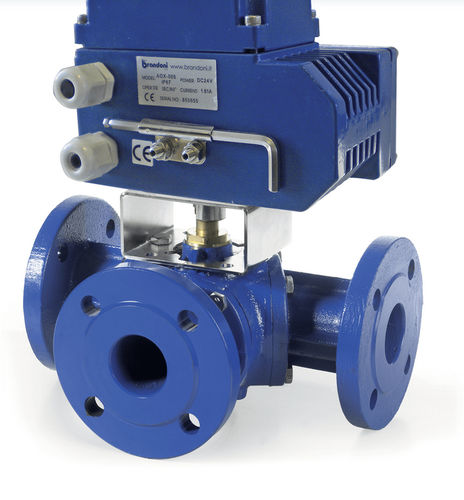

Electric actuators
توضیحات:
Type
ball
Operation
lever, pneumatically-operated, electrically-actuated
Function
distribution, diverter
Media
for water, for compressed air
Applications
industrial, for heating, HVAC
Material$
cast iron
Number of channels
3-way
Other characteristics
ISO
DN
Min.: 50 mm(1.969 in)Max.: 150 mm(5.906 in)
Pressure
10 bar, 16 bar(145 psi, 232.1 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 170 °C(338 °F)
