نام محصول:
دریچه
نام انگلیسی:

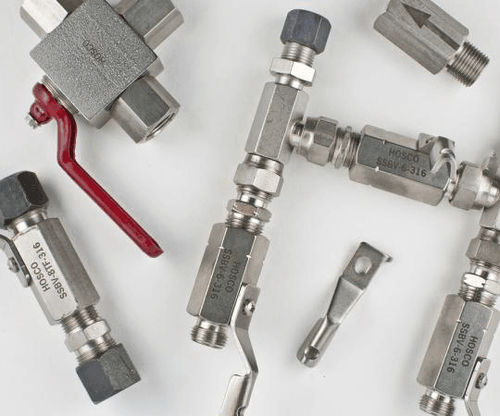

Ball valve Hosco SSBV
برند:
Binks
مشخصات:
Compact & HBV Ultra Compact Ball Valves
Provide manual dispense control to a paint station or dispense point.
Eliminating the nagging “dirt in paint” problems starts with having the paint drops comprised of Hosco smooth-bore, cavity-free, micro-finshed components. Hosco valves are all stainless steel, smooth-bore, fully encapsulated, and cavity-free allowing them to flush easily and quickly so there is no place for dried paint to hide. Our valve family is available in every configuration needed in paint circulation drop stations from 1/4″ to 5/8″ or 8mm to 14mm sizes- threaded, bulkhead threaded, compression, bulkhead compression, and tube up to 18″ long. Our valves include adjustable packing for cradle to grave service in a paint shop’s 25 year life, with PTFE packing and seats that provide chemical resistance to all of the coatings used or anticipated for use in the future.
توضیحات:
Type
ball
Operation
with handwheel, pneumatic
Function
for control
Body$
threaded, chemical-resistant
Applications
industrial, industrial, for automobiles, for wood
Material$
PTFE, stainless steel
Other characteristics
compact, chemical-resistant
DN
Min.: 8 mm(0.315 in)Max.: 14 mm(0.551 in)
