نام محصول:
دریچه
نام انگلیسی:
Butterfly valve VVF
برند:
BARDIANI VALVOLE S.p.a.
مشخصات:
MAIN BENEFIT/USP
Certified hygienic design
Maximum reliability
Versatility of product configuration

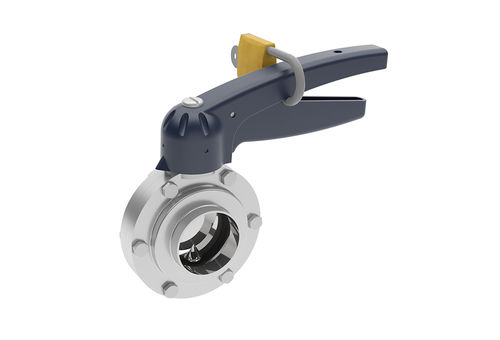

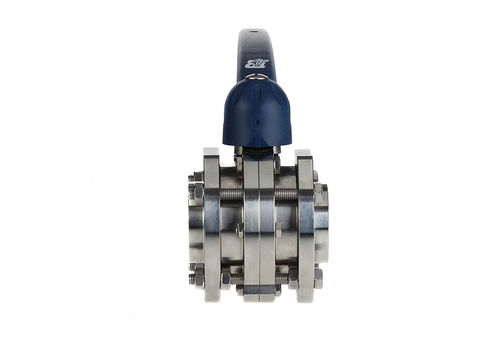

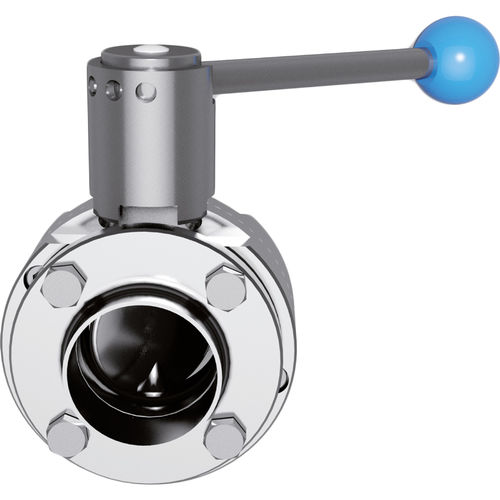

The VVF is a manual butterfly valve which cuts off and monitors fluids in the process flow by movements of opening and closing. Characterized by a simple and elegant design and engineered to be extremely reliable, it is commonly used in many different applications requiring ample product passage. Available in versions with a plastic 5-position handle, stainless steel 4-position handle or with a millimetric regulation handle for precision measuring of fluid passage.
STANDARD FEATURES
EPDM, FKM, MVQ and HNBR gaskets
FURTHER OPTIONS
Sensors: the application of one or two proximity sensors shows the exact position of the valve while opening
Stroke limiter: this accessory allows mechanical regulation of the valve range
توضیحات:
Type
butterfly
Operation
manual
Function
for control
Applications
process, hygienic
Material$
plastic, EPDM, stainless steel
DN
Min.: 10 mm(0.394 in)Max.: 150 mm(5.906 in)
Pressure
10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 25 °C(77 °F)
