نام محصول:
دریچه
نام انگلیسی:
Ball valve ZVS
برند:
BARDIANI VALVOLE S.p.a.
مشخصات:
MAIN BENEFIT/USP
Product passage without restrictions guaranteed
High-precision
Maximum versatility

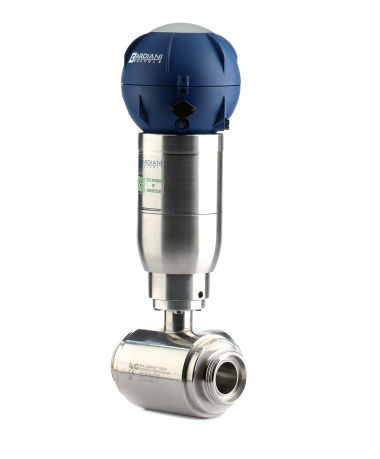

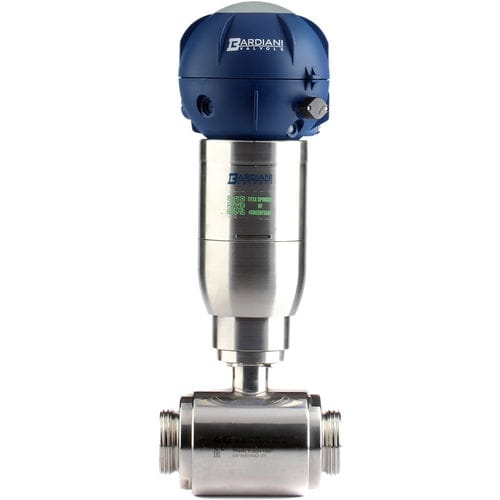

ZVS is a pneumatic sanitary ball valve which allow product passage without restrictions, reducing friction loss to a minimum.
It is ideal for viscous liquids or liquids with suspended particles in food, beverage and pharmaceutical industries and in applications with high operating pressures.
On request the integral seal version it’s available, to reduce product stagnation inside the valve body to a minimum.
STANDARD FEATURES
FKM and PTFE gaskets
FURTHER OPTIONS
Stroke limiter: this accessory allows mechanical regulation of the valve range
توضیحات:
Type
ball
Operation
pneumatic
Function
for control
Applications
for industrial applications, for viscous liquids, beverage, sanitary, food
Material$
PTFE
Associated function
reducing
Other characteristics
ISO, integral
DN
Min.: 10 mm(0.394 in)Max.: 100 mm(3.937 in)
Pressure
Min.: 16 bar(232.1 psi)Max.: 64 bar(928.2 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 25 °C(77 °F)
