نام محصول:
دریچه
نام انگلیسی:
Ball valve VVS
برند:
BARDIANI VALVOLE S.p.a.
مشخصات:
MAIN BENEFIT/USP
Product passage without restrictions guaranteed
High-precision
Maximum versatility

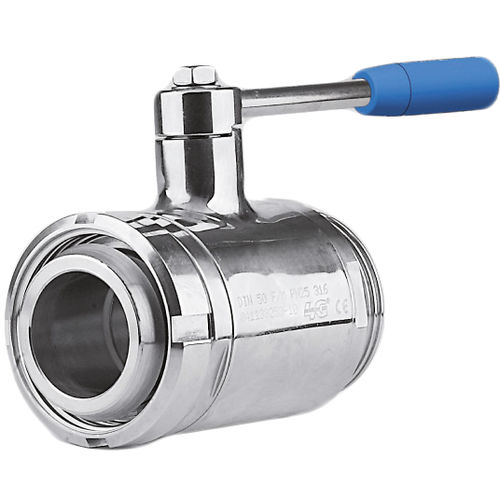

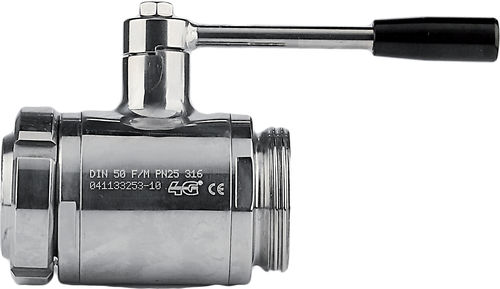

The VVS is a manual sanitary ball valve made by positioning a precision ball with hole inside the valve body whose opening movement allows a product passage without restrictions thus reducing friction loss to a minimum. It is ideal for viscous liquids or liquids with suspended particles in the food, beverage and pharmaceutical industries and in applications with high operating pressures. On request also available in the integral seal version to reduce any product stagnation inside the valve body to a minimum. Fitted with a stainless steel 2-position handle, a handle with multiple positions is available on request.
STANDARD FEATURES
FKM and PTFE gaskets
FURTHER OPTIONS
Stroke limiter: this accessory allows mechanical regulation of the valve range
توضیحات:
Type
ball
Operation
lever, manual
Function
for control
Applications
for industrial applications, for viscous liquids, beverage, sanitary, food
Material$
PTFE, stainless steel
Associated function
reducing
Other characteristics
ISO, integral, with positioner
DN
Min.: 10 mm(0.394 in)Max.: 100 mm(3.937 in)
Pressure
Min.: 16 bar(232.1 psi)Max.: 64 bar(928.2 psi)
