نام محصول:
دریچه
نام انگلیسی:
Ball valve PKI
برند:
bar pneumatische Steuerungssysteme GmbH
مشخصات:

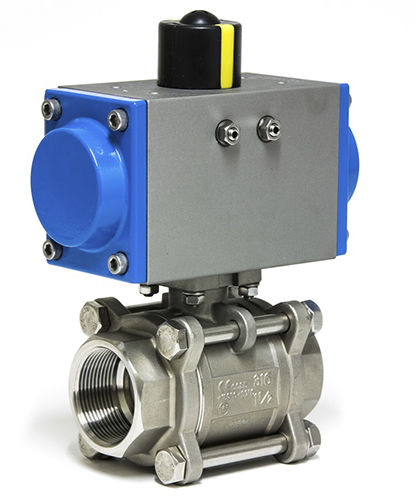

Shut-off valve is made of three stainless steel parts with floating precision ball. The valve is operated pneumatically (double- and single-acting) and is characterized by a long service life and high operational safety.
PRODUCT FEATURES
Full passage
Maintenance-free
Optionally available with end position feedback, position controllers and solenoid valves
Anti-blowout spindle
Usage also with vacuum and high flow velocities
Alternatively also can be delivered with electric rotary actuator, hand lever or gearbox
SPECIAL DESIGNS
Please contact us.
توضیحات:
Type
ball
Operation
pneumatic
Function
shut-off
Material$
stainless steel
Number of channels
2/2-way
Other characteristics
automatic, double-acting, single-acting
DN
Min.: 15 mm(0.591 in)Max.: 100 mm(3.937 in)
Pressure
50 bar, 63 bar(725.2 psi, 913.7 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 160 °C(320 °F)
