نام محصول:
دریچه
نام انگلیسی:

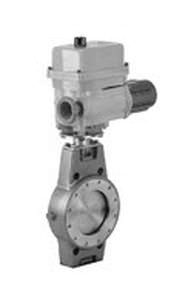

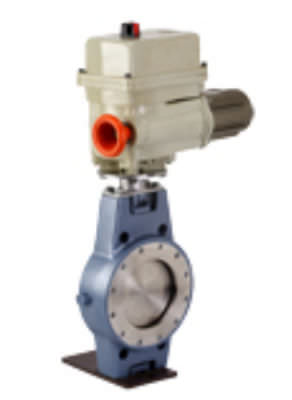

Butterfly valve BFV-4526 B series
برند:
Avcon Controls PVT. Ltd.
مشخصات:
Testing & Inspection: In accordance to ISO 5208.
Pressure Temp. rating: As per ANSI Class150.
End Connections: Suitable for holding between the Flanges of ANSI B16.5, Cl.150.
Characteristic: On-Off.
For Air, Water, Oil, Gas, some Chemicals, Low pressure steam. Valve can be used on Combustion Equipments, Power Stations, Chemicals, Petro-chemicals, Pharmaceuticals and Textile Process Industries, Water Treatment, ROP systems etc.
توضیحات:
Type
butterfly
Operation
electrically-actuated
Media
for water
Body$
wafer
DN
Min.: 50 mm(1.969 in)Max.: 300 mm(11.811 in)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Flow rate
Min.: 90 m³/h(3,178.32 ft³/h)Max.: 3,498 m³/h(123,530.7 ft³/h)
