نام محصول:
دریچه
نام انگلیسی:
Ball valve V150
برند:
ASCO
مشخصات:

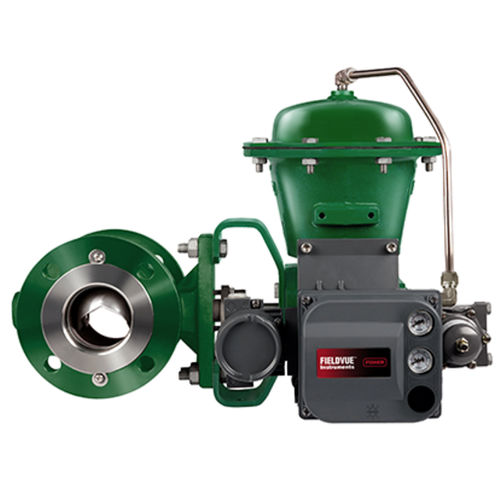

The Fisher Vee-Ball V150 control valve is your best choice for performance and cost-effectiveness across a broad range of applications. The precision-machined parts and pressure-balanced seal designs allow smooth, precise valve operation.
Specifications
CertificationsSIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE
Critical ServiceNoise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service
Flow CharacteristicsEqual Percentage
MaterialCarbon Steel, Stainless, Duplex, Alloy
Operating TemperatureStandard Temperature
Pressure ClassPN, ASME
Process Connection TypeFlanged
Shutoff ClassClass III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2)
Valve SizeNPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 20, NPS 24
Valve Size StandardNPS, DN
Other ConfigurationsContact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Features
Flanged body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity.
The solid HD ball seal construction provides long service life in demanding applications.
Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.
Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156.
Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve.
توضیحات:
Type
ball
Operation
pneumatic
Function
for control
Body$
flange, in-line
Applications
flange, process, actuator, flange
Material$
steel, alloy, stainless, carbon steel
Other characteristics
ISO, ATEX
DN
Min.: 80 mm(3.15 in)Max.: 300 mm(11.811 in)
Pressure
Min.: 10 bar(145 psi)Max.: 16 bar(232.1 psi)
