نام محصول:
دریچه
نام انگلیسی:

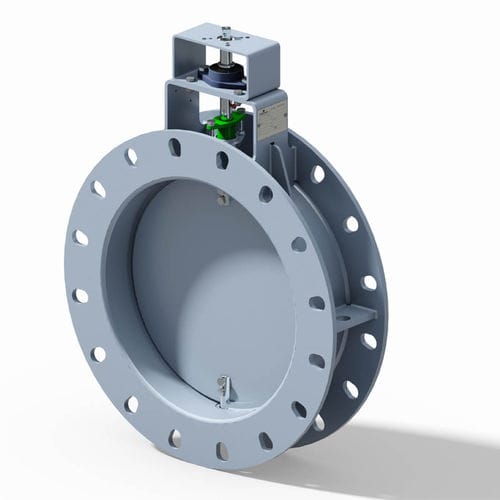

Butterfly valve AMM701
برند:
AMMtech Srl
مشخصات:
Max Leakage Class III (FCI 70-2)
End Connections: Wafer, Flanged
Material: Carbon Steel, AISI 304, AISI316
General Characteristics
– ON/OFF or MODULATING Service
or according to Customer Drawing
– Outside Bearing
– Tightness Class I, II and III according to FCI 70-2 (ex ANSI B16.104)
– Operated by Handlever, Pneumatic or Electric Actuators
Materials
– 304 SS
– 316 SS
– Others upon request
Coating
– According to PSP00 Cycle PS3_P
Test
– According to AMMtech Quality Control Plan QCP00
– According to ANSI/FCI70-2, EN 12266-1, EN 12266-2, EN 60534
توضیحات:
Type
butterfly
Operation
manual
Media
biogas
Body$
with flange
Applications
for the chemical industry, for oil industry applications, HVAC, wafer
Material$
carbon steel
Other characteristics
double-acting, for cement
DN
Min.: 150 mm(5.906 in)Max.: 1,500 mm(59.055 in)
Pressure
Min.: 0.2 bar(2.9 psi)Max.: 3 bar(43.5 psi)
Temperature
200 °C(392 °F)
