نام محصول:
دریچه
نام انگلیسی:
Plug valve 100 M5 series
برند:
Aircomp by Stampotecnica
مشخصات:

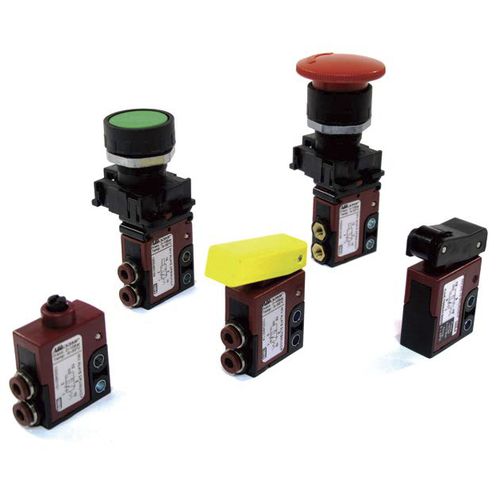

Line 100 poppet Microvalves are available in a wide range of versions and actuations in order to meet the most demanding applications requirements.
Reduced dimensions, speed and signal precision represent some of the features of this line, that can be supplied both with M5 connections and push-it fittings for pipe 4 mm, in the version with rear ports or side ports.
توضیحات:
Type
plug
Operation
pneumatically-operated
Media
for air
Body$
micro
Number of channels
3/2-way, 2/2-way
DN
4 mm(0.157 in)
Pressure
Min.: 2 bar(29 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -5 °C(23 °F)Max.: 50 °C(122 °F)
