نام محصول:
دریچه
نام انگلیسی:

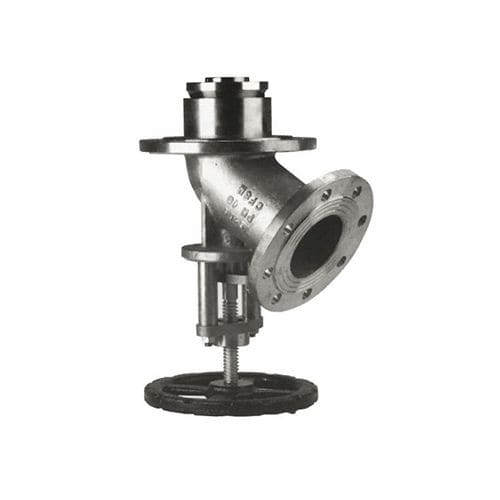

Plug valve
برند:
ABV
مشخصات:
•The rising opening system breaks the sediment or crystallized layer on the bottom of the tank.
•Mechanized in high alloy stainless steel.
Specifications
•Quality: ASTM A.351 Gr. CF8M (316).
•Closing: Metal – Metal.
•Control: Hand by wheel.
•Stem packing: + 250 °C.
Special executions
•The C dimension could be modified according tpo your requirements.
•Descend opening.
•PTFE plane seat.
•STELLITED closing.
•Cover with EBONITA for Chloridric Acid.
•Membrane pneumatic actuator of double or simple action.
•Qualities: Stainless Steel acc. to ASTM A.351, Gr. CF8; CN-7M; Etc.
•Special alloys: INCONEL’
MON ELL; HASTELLOY; Etc.
توضیحات:
Type
plug
Operation
with handwheel
Function
drain, purge
Body$
flange
Applications
tank bottom
Material$
stainless steel
DN
Min.: 25 mm(0.984 in)Max.: 150 mm(5.906 in)
Pressure
10 bar, 16 bar(145 psi, 232.1 psi)
Temperature
300 °C(572 °F)
