نام محصول:
دریچه گوه
نام انگلیسی:
Wedge gate valve GV series
برند:
HD FIRE PROTECT PVT. LTD.
مشخصات:
•OS&Y and NRS resilient Wedge Gate valves
•Rated for maximum 21 bar (300 PSI) operating pressure
•Size : 50 to 300 mm (2” to 12”)
•Flanged: ANSI B16.1/ AWWA or BS EN 1092 PN16
•Fully encapsulated EPDM Ductile Iron Wedge Disc
•Stainless Steel Stem
•Fusion Bond Epoxy Coated Interior and Exterior Surfaces
•UL Listed and FM Approved
•Valves can be easily fitted with OS&Y Tamper switch

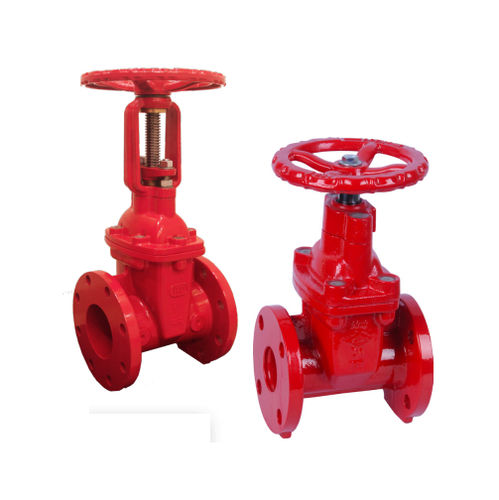

HD ductile iron Gate Valves are available as OS&Y Type with rising stem and as NRS type with non-rising stem. Gate valves are designed to be the control valves in many of fire protection systems. Gate valves have flanged end connections, either ANSI/AWWA or BS PN16. HD Gate valves are fusion bonded epoxy coated, externally as well as internally. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/ closed position is required. These can be easily fitted with OS&Y Tamper switch. Gate valves are UL Listed and FM Approved.
توضیحات:
Type
wedge gate
Operation
manual
Media
for water
Body$
coated
Applications
for fire safety applications
Material$
EPDM
Other characteristics
rising stem
DN
Min.: 2 inMax.: 12 in
Pressure
14 bar, 16 bar, 21 bar, 24 bar(203.1 psi, 232.1 psi, 304.6 psi, 348.1 psi)
