نام محصول:
دریچه گوه

نام انگلیسی:
Wedge gate valve 2500 series

برند:
American Flow Control

مشخصات:

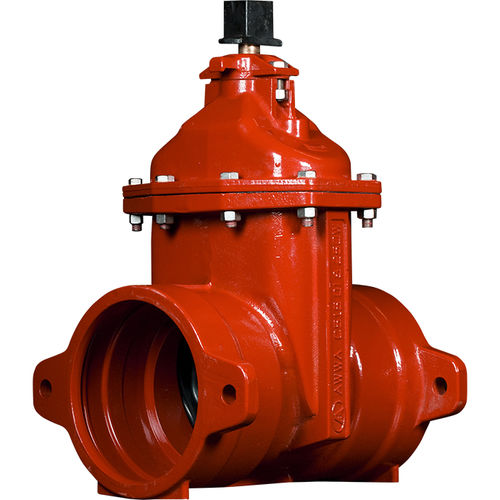

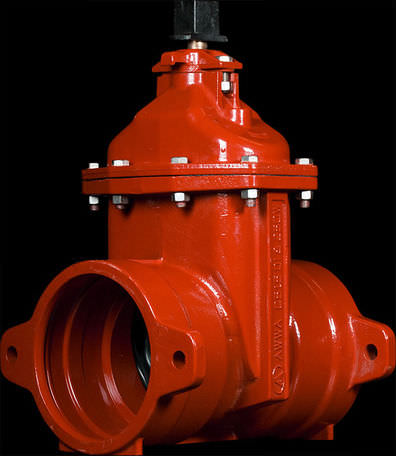

The AMERICAN Series 2500 Ductile Iron 250 psig AWWA Resilient Wedge Gate Valve is designed for use in drinking water, sewage and fire protection systems as well as irrigation and backflow control systems. The Series 2500 Resilient Wedge Gate Valve is furnished in configurations that are UL Listed and FM Approved.

Triple O-ring Stem Seals

Sealing the lubrication chamber is a series of three O-ring stem seals. The O-rings help to isolate the lubrication chamber.
Thrust Washers

Two thrust washers are used. One is located above and one is located below the thrust collar. These thrust washers provide easy operation.
Ductile Iron Construction

The ductile iron body, bonnet and wedge provide strength and a pressure rating that meets or exceeds the requirements of AWWA C515. The tensile strength of ductile iron is more than twice that of cast iron. This added strength makes the Series 2500 more durable and rated at 250 psig. This strength and higher pressure rating is provided in a compact, lightweight and easy-to-handle ductile iron valve.

توضیحات:
Type
wedge gate

Function
flow-control

Media
for water

Applications
for water systems

Associated function
backflow, sewage, fire protection

Other characteristics
compact

DN
Min.: 4 inMax.: 12 in

Pressure
250 psi
