نام محصول:
دریچه کنترل
نام انگلیسی:

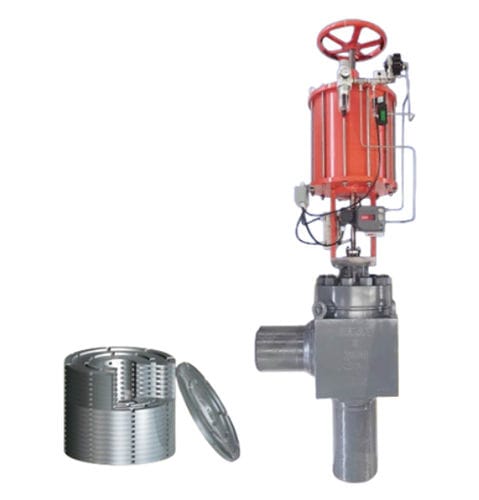

Control valve MX
برند:
Suzhou Delan Energy Science & Technology Co.,Ltd
مشخصات:
Pressure level: 150LB-4500LB
Design standard: ASME B16.34
Valve body material: WB36/A105/F22
Flow characteristics: L
Leakage level: MSS-SP61
Product Features
1. – Multi-stage pressure réduction structure principle effectively avoids cavitation and prolongs service life.
2. – The valve seat and valve core have good sealing performance and achieve zéro leakage. It can ensure reliable and repeatable long-term dosure at high pressure.
3. – Ail valve internai parts can be quickly disassembled and replaced, which makes maintenance easy and reduces maintenance costs.
4 Applicable to peak load units.
توضیحات:
Operation
with handwheel, pneumatic, electrically-actuated, hydraulically-operated
Function
for control, pressure-reducing
Media
for hot water, for steam
Applications
for boiler, for pump
Material$
stainless steel, carbon steel
Number of channels
2-way
Associated function
reducing, recirculation
Other characteristics
high-pressure
DN
Min.: 0.5 inMax.: 12 in
Pressure
Min.: 10 MPaMax.: 76 MPa
Temperature
Min.: -29 °C(-20 °F)Max.: 425 °C(797 °F)
