نام محصول:
دریچه کنترل
نام انگلیسی:

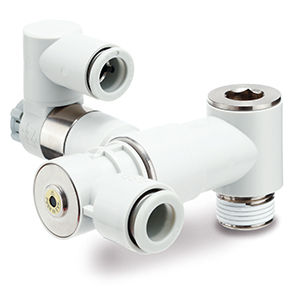

Control valve ASP-G
برند:
SMC
مشخصات:
Your three-in-one solution
• Make temporary intermediate stops – With integrated pilot check valve
• Construct a safety circuit – With residual pressure release function as an option
• Fit it anywhere – As small as 26.8 mm high for the horizontal type.
And much more
• Port Size: M5, 10-32UNF, 1/8, 1/4, 3/8, 1/2
• Applicable Tubing O.D.: Ø 4 to Ø 12 mm
• Operating Pressure Range: 0.1 to 0.7 MPa.
توضیحات:
Type
plug
Operation
manual
Function
for control
Media
for air
Body$
lockable
Applications
for tubes
Material$
brass, stainless steel
Other characteristics
compact, push-to-lock
Pressure
Min.: 0.1 MPaMax.: 0.7 MPa
Temperature
Min.: -5 °C(23 °F)Max.: 60 °C(140 °F)
