نام محصول:
دریچه کنترل
نام انگلیسی:

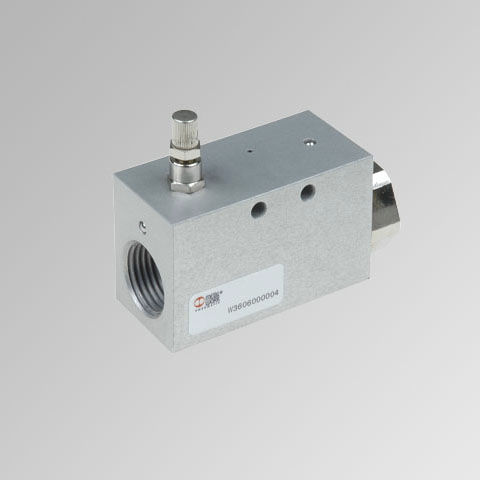

Control valve VAP series
برند:
METAL WORK
مشخصات:
The in-line progressive starter is a valve that regulates the flow of air until the outlet pressure reaches a certain value, at which the valve opens and allows air to flow at full rate. This valve can be used to control a group of valves or a single valve, or it can be mounted between another valve and an actuator. The air that enters inlet 1 passes through a choke that has a knob adjustment to control the flow. The valve opens completely when the outlet pressure reaches about 60% of the inlet pressure. If the air supply is switched off, the valve discharges air from outlet 2 to inlet 1.
• Kurze Beschreibung: : In-line progressive start VAP 1/4
• Mindest. Liefermenge : 0
• Mindest. Bestellmenge : 0
• Durchfluss bei 6 bar ΔP 0.5 bar (Nl/min) : 01050
• Durchfluss bei 6 bar ΔP 1 bar (Nl/min) : 2350
• Eingangsdruck, maximal(bar) : 010
• Eingangsdruck, minimal (bar) : 02
• Funktionsbezeichnung : Progressiver Inline-Starter
• Gehäusematerial : Aluminum
• Gewindeanschluss : 1/4”
• Produktreihe : Progressive starter series VAP
• Temperatur, maximal (°C) : 70
• Temperatur, minimal (°C) : -10
• Thread type : Cylindrical
توضیحات:
Function
for control, flow regulator
Media
for air
Body$
in-line
Material$
steel, nickel-plated brass, anodized aluminum, zinc-plated steel
Associated function
outlet
Other characteristics
normally closed
DN
0.25 mm, 0.5 mm(0.01 in, 0.02 in)
Pressure
Min.: 2 bar(29 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 70 °C(158 °F)
Flow rate
1,050 l/min, 1,500 l/min, 2,350 l/min, 3,100 l/min(277.38 us gal/min, 396.26 us gal/min, 620.8 us gal/min, 818.93 us gal/min)
