نام محصول:
دریچه کنترل فشار پنوماتیک
نام انگلیسی:

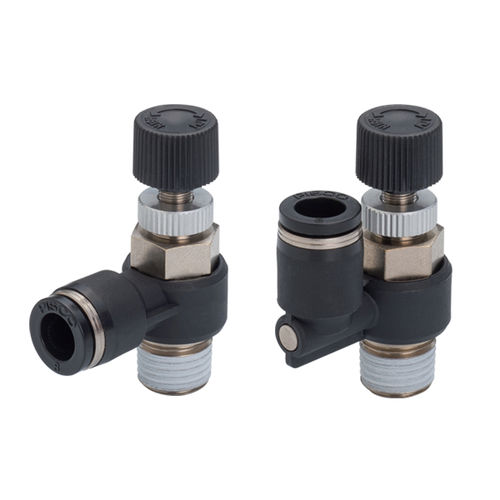

Pneumatic pressure-control valve JP series
برند:
NIHON PISCO CO., Ltd.
مشخصات:
Pressure control valve saves compressed air consumption.
In driving an actuator under high pressure, compressed air can be saved by use of the pressure controller to reduce the pressure only during home return.
Controls the pressure for advance and return of an actuator.
When a primary pressure is supplied from the thread side, a reduced pressure will come out from the fitting side. When the primary pressure is supplied from the fitting side, the same pressure will come out from the thread side because of the operation of the check valve.
For price options, please contact our distributor near your office. https://www.pisco.co.jp/en/company/network/
توضیحات:
Type
needle
Operation
with handwheel, pneumatically-operated
Function
pneumatic pressure-control
Media
for air, for compressed air
Body$
male
Applications
for pneumatic cylinders
Material$
nickel-plated brass, polymer, stainless steel
Associated function
reducing
Other characteristics
compact, push-in
DN
4 mm, 6 mm, 8 mm, 10 mm, 12 mm(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)
Pressure
Min.: 0 MPaMax.: 0.6 MPa
Temperature
Min.: 0 °C(32 °F)Max.: 60 °C(140 °F)
