نام محصول:
دریچه کنترل جهت پنوماتیک پوپت
نام انگلیسی:

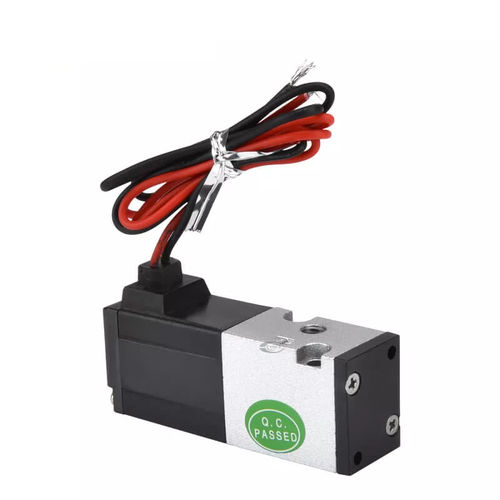

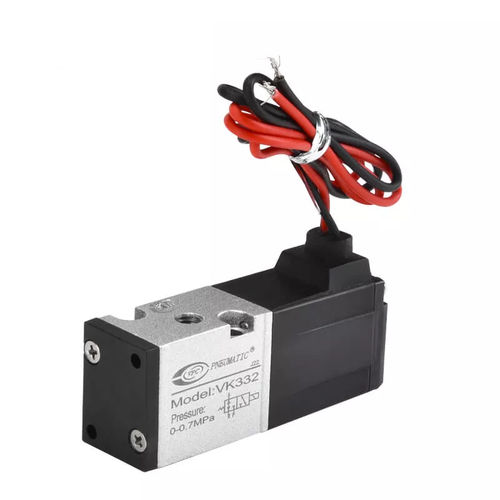

Poppet pneumatic directional control valve VK300 Series
برند:
Ningbo VPC Pneumatic Co., Ltd.
مشخصات:
The VK series is available as 3 and 5 port solenoid, direct poppet, rubber seal valve. It meets copper free specifications as all parts in contact with fluids are made of non-copper materials. A compact valve (width 18 x length 68mm), the VK series is available in a body ported or base mounted style.
Product Feature
1. Universal porting: Available for N. C. valve, N .O. valve, divider valve, selector valve, etc.
2. Compact: Width 18×Length 63 (mm)
3. Low power consumption: DC 4W (Standard type), DC 2W (Low wattage type)
5. Suitable for use in vacuum applications -101.2kpa
6. Suitable for use in copper-free applications
The portions that come in contact with flfluids do not contain copper, thus enabling the standard product to be used as is.
توضیحات:
Type
poppet
Actuating method
solenoid-operated, direct-operated
Ports/positions
3/2-way
Function
normally closed, normally open
Process connection
1/8″
Other characteristics
aluminium, compact
Operating pressure
Min.: -101,200 Pa(-14.68 psi)Max.: 700,000 Pa
