نام محصول:
دریچه کنترل جهت پنوماتیک قرقره
نام انگلیسی:
Spool pneumatic directional control valve SK series
برند:
Waircom
مشخصات:

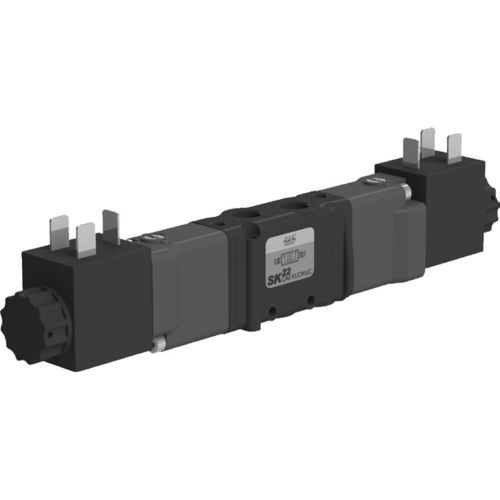

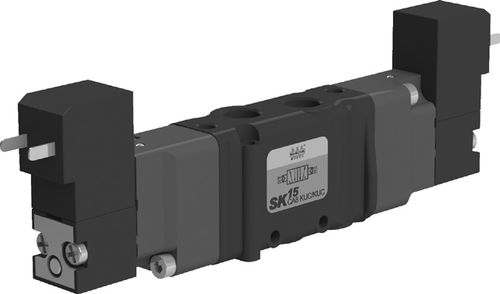

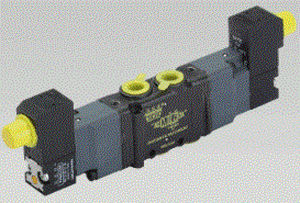

Valves series “SK” are produced the size G1/8 in the following pneumatic functions: 3/2, 5/2, 5/3 and “3/2+3/2”. The electrical version can mount two kinds of piloting solenoid valves: the 15 mm one (type “SK815”) or the 22 mm integrated one (type “SK822”). Valves series “SK” can be used single or in manifold mounting, regardless the pneumatic functions: 5/3, 5/2 and 3/2, the last one using the adapter type “KIT/A/SK8”.
توضیحات:
Type
spool
Actuating method
pneumatically-operated, pilot-operated
Ports/positions
3/2-way, 5/2-way, 5/3-way
Other characteristics
spring-return
Operating pressure
Max.: 8 bar(116.03 psi)Min.: 3 bar(43.51 psi)
