نام محصول:

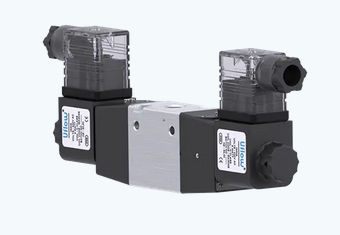

دریچه کنترل جهت پنوماتیک قرقره
نام انگلیسی:
Spool pneumatic directional control valve DCS-C series
برند:
UFLOW AUTOMATION
مشخصات:
> – Media: – Compressed Air, Filtered & Lubricated
> – Ambient/Medium Temperature: 5°-60°C
> – Materials of Construction: Aluminium, Nitrile, Brass, Polymer
Coil Information
> – Coil Width: – 26 mm
> – Coil Bore: – 10 mm
> – Voltage (V) + 10%: – AC (50Hz, 60Hz) – 24V, 110V, 230V DC 12V, 24V
> – Power Consumption: – AC-6W, DC-5W
> – Duty Cycle: – Continuous
> – Class of Insulation: – Class H
> – Coil Housing: – Epoxy Square Coil
توضیحات:
Type
spool
Actuating method
pneumatically-operated
Ports/positions
3/2-way
Other characteristics
aluminium, brass, IP65
Operating pressure
Min.: 2 bar(29.01 psi)Max.: 10 bar(145.04 psi)
Flow rate
1,350 l/min, 3,500 l/min(356.6 us gal/min, 924.6 us gal/min)
