نام محصول:
دریچه کنترل جهت پنوماتیک قرقره
نام انگلیسی:

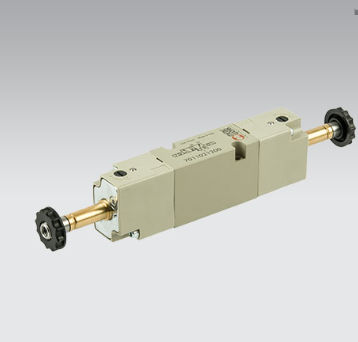

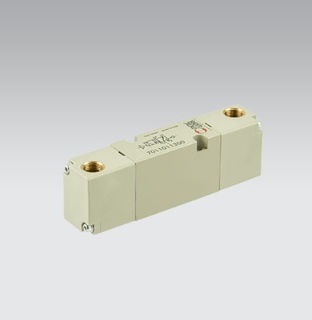

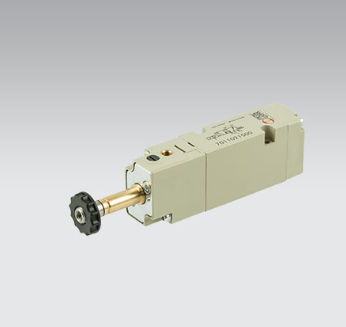

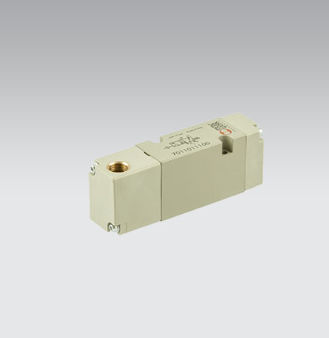

Spool pneumatic directional control valve 70 series
برند:
METAL WORK
مشخصات:
These series 70 valves on a base can be obtained in both air and solenoid-actuated versions. When intervention on the valves is required without disconnecting the pipes, the series 70 valves are an efficient, clean solution. For these valves, all the inlet, outlet and utility ports are in the base.
Quantity per package: 0
Minimum order quantity: 0
Unit of measure: items
Functional denomination: Valve Pneumatic coupling 1/8″ OO monostable
Max temperature (°C): 60
Min input pressure (bar): -0.99
Min temperature (°C): -10
Product series: Valve 70 series
Threaded port: 1/8″
توضیحات:
Type
spool
Actuating method
pneumatically-operated, solenoid-operated
Ports/positions
5/2-way, 5/3-way
Other characteristics
aluminium, base-mounted
Operating pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145.04 psi)
Flow rate
320 l/min, 450 l/min(84.5 us gal/min, 118.9 us gal/min)
