نام محصول:

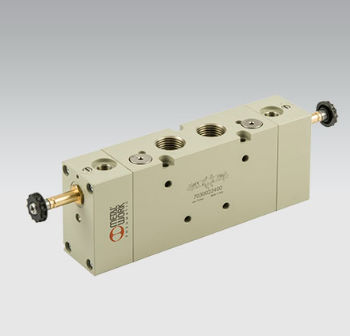

دریچه کنترل جهت پنوماتیک قرقره
نام انگلیسی:
Spool pneumatic directional control valve 70 series
برند:
METAL WORK
مشخصات:
The Series 70 forms part of Metal Work’s full range of tracttional valves.
They are available in sizes 1/8′, 1/4′, 3/8′ and 1/2*, versions 3/2, 5/2, 5/3 and double 3/2, with mechanical, manual, pneumatic and electric drives.
They can be installed in line, onto a wall, on the cylinder (using a special brocket) or in series (on a multiple or modular base) to suit all possible applications.
These highly reliable valves comply with the main applicable standards, inducing Atex, ISOl 3489 and SIL, as stated in the documents and certificates available online.
Quantity per package: 0
Minimum order quantity: 0
Unit of measure: items
Valves
Coils voltage: 12VDC – 24VDC – 24VAC – 110VAC – 220VAC 50/60 Hz
Insertion time: 100% ED
Insulation class: F 155
Max temperature (°C): 60
Max torque for coil nut (Nm): 1
Min temperature (°C): -10
Power: 2W(DC) 3.5VA(AC)
Protection degree: IP 65 EN60529
Threaded port: 1/8″
Voltage tolerance: -10% ÷ 15%
Way scheme: 3/2
توضیحات:
Type
spool
Actuating method
pneumatically-operated, electrically-operated, manual, mechanically-operated
Ports/positions
3/2-way, 5/2-way, 5/3-way
Function
normally closed, normally open
Other characteristics
modular
Operating pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145.04 psi)
Flow rate
Min.: 400 l/min(105.7 us gal/min)Max.: 4,600 l/min(1,215.2 us gal/min)
