نام محصول:
دریچه کنترل جهت پنوماتیک قرقره
نام انگلیسی:

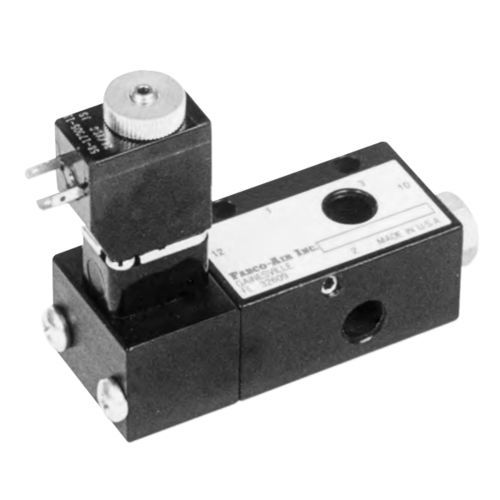

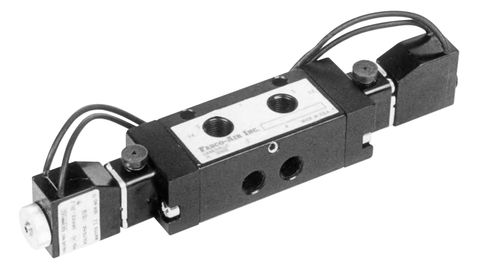

Spool pneumatic directional control valve 18 series
برند:
FABCO-AIR
مشخصات:
The 18, 14, M14 and 34 Series directional control valves feature a lightweight short-stroke Delrin® spool for a fast and reliable response. These valves are suitable for vacuum directional flow applications, but not for holding vacuum applications. Selected models of the 14 Series can also be stacked to save money and space.
Available with the following actuations:
• Air pilot
• Air pilot amplifier
• Rod actuator
• Roller cam
• Small palm button
• Large palm button
• Panel mount button
• Hand lever
• Single and double solenoid
KEY SPECIFICATIONS
FEATURES
• Operation to 150 psi
• Operating temperature: +0° to +80° C
• Cv: 1.0/ 56.2 SCFM free flow to atmosphere at 80 psi supply
• Aluminum bar body
• Honed and roller burnished bore
• Dynamic Buna-N seals on pressure-balanced Delrin® spool
• Prelubed with Magnalube-G® grease
TECHNICAL ADVANTAGES
• Lightweight aluminum construction
• Anodized bodies for corrosion resistance
• Interchangeability of parts
توضیحات:
Type
spool
Actuating method
solenoid-operated
Ports/positions
3-way, 2-way, 4-way
Operating pressure
150 psi
