نام محصول:
دریچه کنترل جهت پنوماتیک با استفاده از الکترونوئید
نام انگلیسی:

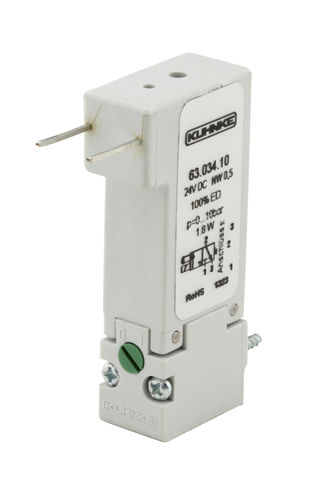

Solenoid-operated pneumatic directional control valve 10 mm, 0 – 10 bar | 63.0 series
برند:
Kendrion Kuhnke Automation GmbH
مشخصات:
The Kuhnke Solenoid Valves are designed based on the user’s specific needs, which may include considerably higher hygienic standards compared to conventional pneumatic applications. These special demands may include having low noise operation.
The valve may have three unique electric connection possibilities and may have an optional notching hand. The unit can work with a nominal voltage of 24 V DC and with pressure ranging from 0 to 10 bar. The working ambient temperature can be from -10° to + 50°C. It can work with an operating medium of 5 micron filtered, lubricated air or non-lubricated compressed air.
The valves are also suitable for other media that meets the requirements by ISO-VG10 or in the field of laboratory automation, solenoid valves are used as actuators for the exact dosage of gases and fluids.
For more information, please visit:
http://solenoid-valves.kuhnke.kendrion.com/
Valve accessories:
https://kuhnke.kendrion.com/industrial/ics/en/kuhnke-pneumatic-fluid-technology/accessories/valve-accessories.html
توضیحات:
Actuating method
solenoid-operated
Ports/positions
3/2-way
Operating pressure
Max.: 10 bar(145.04 psi)Min.: 0 bar(0 psi)
