نام محصول:
دریچه کنترل جهت هیدرولیک پوپت
نام انگلیسی:

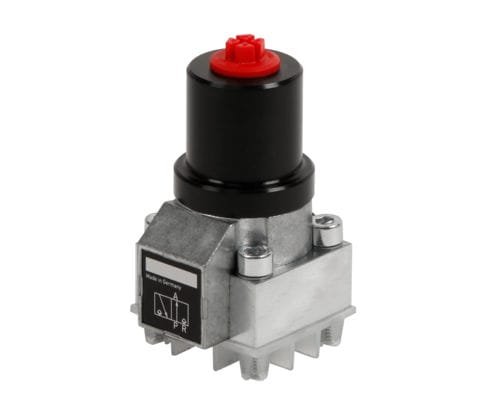

Poppet hydraulic directional control valve C2.320 series
برند:
Römheld GmbH Friedrichshütte
مشخصات:
manually, mechanically or pressure operated
max. operating pressure 500 bar
The directly operated directional control valves are used to control hydraulic elements when a power supply is not possible or reasonable.
These directional control valves can directly control hydraulic consumers or be used as pilot valves for hydraulically-operated switching devices.
The closed directions of flow are hermetically tight. The switching operation is smooth and shock-free. A strainer insert in the pressure port protects the valve seats from coarse impurities.
Technical data
Type: Ball-type poppet valve, hermetically sealed
Type of connection: Mounting plate (see accessories)
Port size: G 1/4
Mounting position: any, vertical preferred
Hydraulic characteristics
Max. operating pressure: 500 bar
Max. flow rate: 8 l/min
Flow direction: only in the direction of the arrow, as in the symbol
Hydraulic oil: as per DIN 51524
Types of operation
manual: Rotary handle or Sensing lever

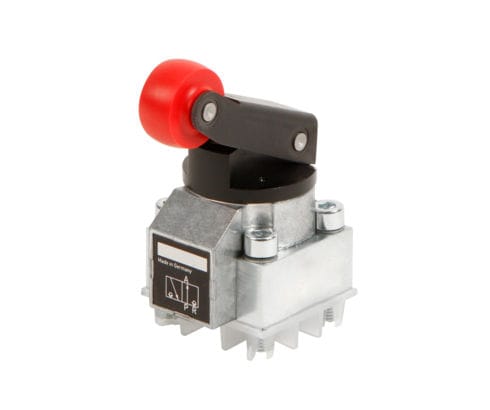

mechanical: Sensing roller or Sensing pin

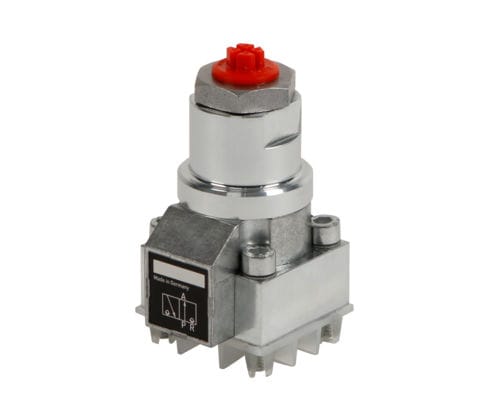

pressure operated: hydraulic or pneumatic
توضیحات:
Type
poppet
Actuating method
manual
Ports/positions
3/2-way
Operating pressure
500 bar(7,251.89 psi)
Flow rate
8 l/min(2.1 us gal/min)
