نام محصول:
دریچه کنترل جهت هیدرولیک هیدرولیک
نام انگلیسی:

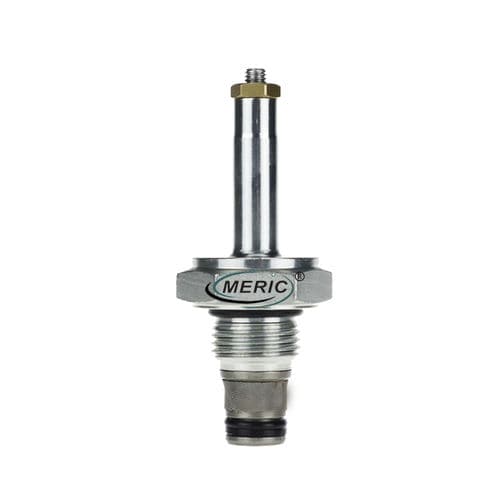

Spool hydraulic directional control valve MSV3-08-2NCS
برند:
Wenzhou Meric Hydraulic Technology Co.,Ltd
مشخصات:
Specifications
· Operating Pressure : 207BAR
· Flow:9.5L/min
· Internal Leakage: 2drop/min.max.at operating pressure
· Temperature:-40°C to +120°(-40°F to+250°F)

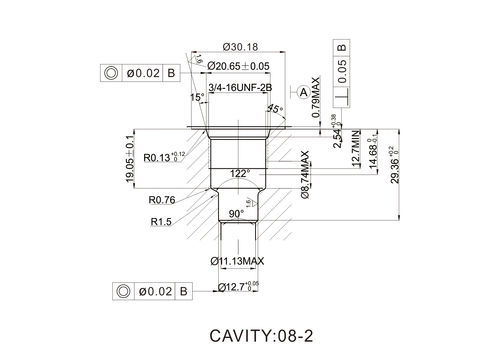

· Cavity:08-2
· Fluids:Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Features
· Hardened,precision ground parts for durability
· Industry common cavity
· Efficient wet-armature construction
· Continuous-duty solenoid
· Compact size
Operation
When de-energized , the valve blocks flow in both directions.
When energized, the valve’s spool shifts moves to allow
bi-directional flow.
توضیحات:
Type
spool, poppet
Actuating method
electrically-operated
Ports/positions
2/2-way
Other characteristics
compact, cartridge, aluminium
Operating pressure
207 bar(3,002.28 psi)
Flow rate
10 l/min(2.6 us gal/min)
