نام محصول:
دریچه کنترل جهت هیدرولیک هیدرولیک
نام انگلیسی:

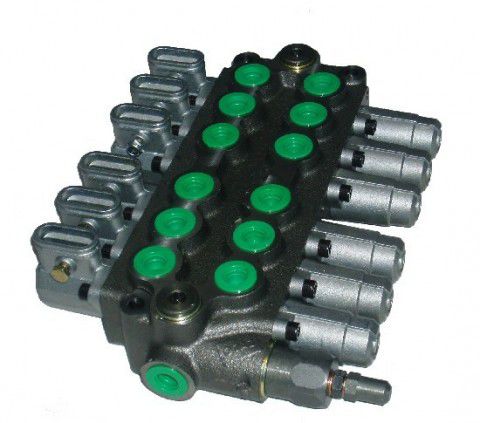

Spool hydraulic directional control valve 102
برند:
Roquet Hydraulics S.L.
مشخصات:
Description
Type of distribution in series. A-B and P-R ports of 3/8 G. for the 102 model and A-B and P-R ports of 1/2 G. for the 1102 model. Diameter of spool 15 mm and stroke 5,5 mm, actuating system by hydraulic, pneumatic, electrical pilot, or by manual lever. A great variety of auxiliary valves exists, fact that allows to adapt itself to the required needs by any type of installation. More information in the attached catalogue.
توضیحات:
Type
spool
Actuating method
lever-operated
Ports/positions
3-way
Other characteristics
monobloc
Operating pressure
350 bar(5,076.32 psi)
Flow rate
Max.: 60 l/min(15.9 us gal/min)Min.: 40 l/min(10.6 us gal/min)
