نام محصول:
دریچه کنترل جهت هیدرولیک هیدرولیک
نام انگلیسی:
Spool hydraulic directional control valve APV 10
برند:
Fluitronics GmbH
مشخصات:
hydraulic sectional proportional controlles spool valve; up to 15 sections; including primary and secondary safety functions; for LS pumps and constant displacement pumps
The AMCA APV control valve series is a highly modular valve design that is available in sectional and plate body designs. The APV series comes in four different sizes, APV10, APV16, APV22 and APV32 and covers a flow range between 80 l/min and 1000 l/min. It further features high pressure range up to 420 bar, low hysteresis and the optional salt and seawater resistant Protalloy coating. A worldwide dealer network of build partners can help you implement your solution.

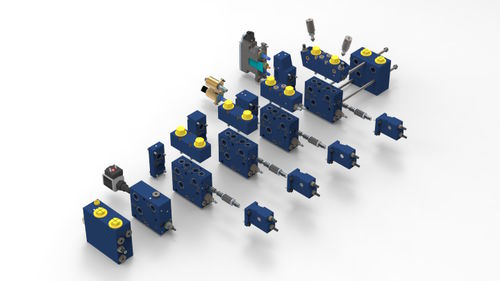

The spool section is the central base, consisting of a spool section (I), basic manifold blocks (II), and spring and end pens (III). In the APV10, for example, a maximum of 15 parallel sections are possible.
Conventional directional control valves control the start, stop and movement directions of hydraulic motors and cylinders. However, the speed of these users depends on the load pressure. If this load pressure varies then the speed is hardly controllable.
The AMCA proportional directional valves of the APV series are pressure compensated and achieve ideal control of force, speed, acceleration and deceleration, regardless of load and increased requirements. Load compensation is provided by the hydraulic pressure compensator (1), the spool at the bottom of the section.

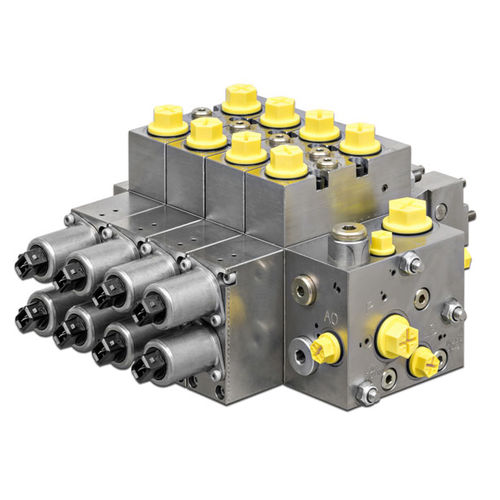

There are different types of actuation for the APV section valve (2). Besides manual actuation, there are hydraulic actuation type and electric actuation type of the main spool.

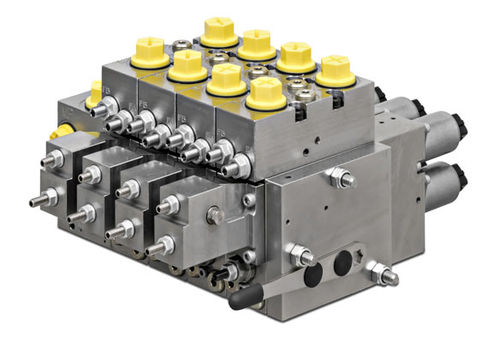

Mobile sectional control valve.
Proportional hydraulic valve. Proportional soilenoid valve.
توضیحات:
Type
spool
Actuating method
manual, solenoid-operated, electro-hydraulic, pilot-operated, hydraulically-operated, mechanically-operated
Ports/positions
4/3-way, 4/2-way
Function
normally closed, normally open
Other characteristics
compact, proportional, sectional, modular, cast iron, spring-return, for high flow rates, pressure-compensated, for marine application
Operating pressure
Min.: 14 bar(203.05 psi)Max.: 350 bar(5,076.32 psi)
Flow rate
Min.: 0 l/min(0 us gal/min)80 l/min, 100 l/min(21.1 us gal/min, 26.4 us gal/min)Max.: 160 l/min(42.3 us gal/min)
