نام محصول:
دریچه کنترل جهت هیدرولیک هیدرولیک
نام انگلیسی:

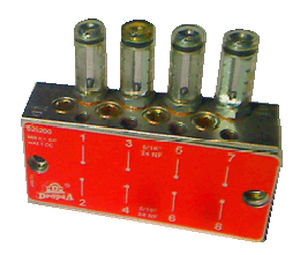

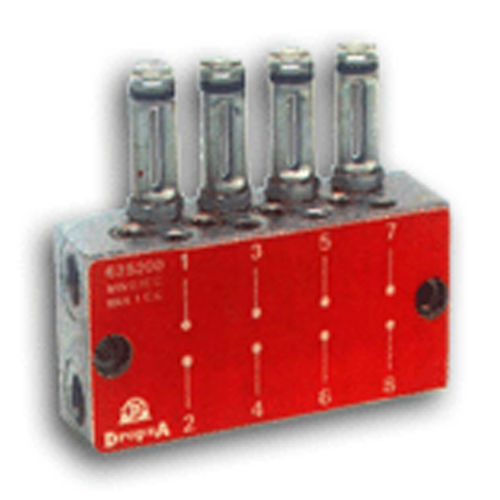

Spool hydraulic directional control valve AP1
برند:
Dropsa spa
مشخصات:
The feeder body is made of special anti-friction steel. Pistons are made of hardened steel. Bores and pistons are lapped to provide superior sealing.
The indicator turrets are provided with integral adjusting screws together with a metacrylate cover and seal.
On request an aluminium cover can be supplied. The feeder body has a galvanized finish and featrures an adaptor for single or double outlet conversion.
Key Features:
– Temperaute range: -30 to +80°C
– Max pressure (inlet): 400bar (5800psi)
– Cycles: 100/min
– Min. Viscosity: 100 cSt ( 462 SSU)
– Grase Max: 265 ASTM (NLGI2)
– Connections: – inlet : 1/4″ – outlet: 5/16″ -24NF
توضیحات:
Type
spool
Actuating method
manual
Other characteristics
steel
