نام محصول:
دریچه کنترل جهت هیدرولیک هیدرولیک
نام انگلیسی:

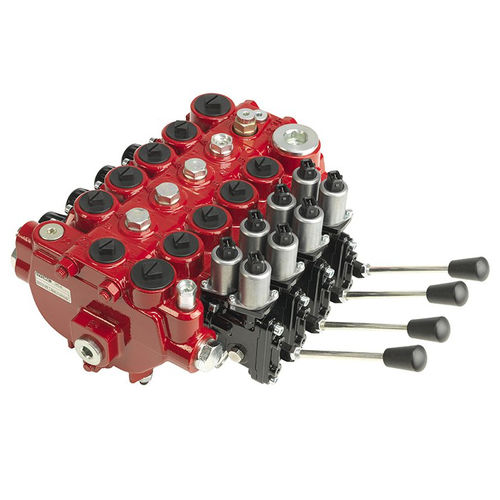

Spool hydraulic directional control valve DX-6
برند:
Cranab
مشخصات:
DX-6 and RS160 are directional control valves available with 1 to 10 sections and 3/8″, 3/4″ or 1/2″ ports, with rated nominal flow from 10 up to 180 l/min and max. operating pressure of 350 bar. Available with manual, cable, pneumatic, hydraulic and electro hydraulic spool controls.
LX-6 is a pre-compensated load-sensing valve for fixed and variable displacement pumps. Up to ten functions can be controlled independently as long as the pump flow is higher than the requested flow. The LX-6 is designed for high accuracy, precision control and energy efficiency. The flexible structure and the compact design makes the LX-6 suitable for a wide range of applications.
DX-6
No. of working sections – 1 to 10
Max pressure – 350 bar
Pump port – 180 l/min
Hydraulic fluid temperature range – -15°/+80 °C
توضیحات:
Type
spool
Actuating method
lever-operated, hydraulically-operated, electro-hydraulic, pneumatically-operated
Operating pressure
350 bar(5,076.32 psi)
Flow rate
180 l/min(47.6 us gal/min)
