نام محصول:
دریچه کنترل جهت هیدرولیک هیدرولیک
نام انگلیسی:

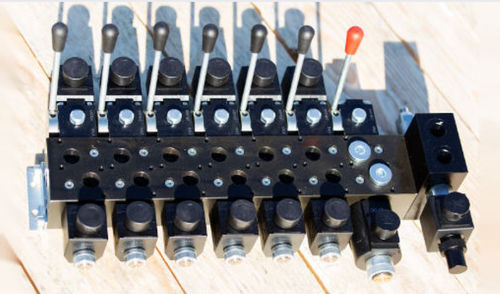

Spool hydraulic directional control valve EBN
برند:
ATLANTIC FLUID TECH SRL
مشخصات:
EBN series is a new directional valve that h as innovative features in terms of performance, dimension, manufacturing reliability and customization. The valve consists in an inlet block flanged to a monoblock with spools. This construction gives the advantages of high flexibility in inlet block schemes,
combined with the reliability and simplicity of monoblock spool valve construction, eliminating the risk of spools blocking due to overtightening of tie rods or the risk of leakage between sections. The spool monoblock is a 2 or 3 position, 4 ways, direct acting solenoid operated type. Ail sections have threaded ports at the top and removable plugs for tank connections to allow the installation of flanged blocks with additional functions like crossover reliefs, reliefs to tank, relief and anticavitations, counterbalance valves, P.O. checks, flow restrictors and flow regulators. Ail sections are equipped with standard push button override and they can be equipped with lever for manual use.
Features
-Low weight
-Custom inlet blocks
-Sandwich valves for extra functions
-High résistance cast iron monoblock and steel inlet block for high pressure systems
-Optional levers for manual opération
-No leak risk between sections
-Spools not under rod tension
-Zinc plated/anodized components for corrosion résistance
توضیحات:
Type
spool
Actuating method
manual
Other characteristics
compact, proportional, monobloc, aluminium, modular, steel, cast iron
Operating pressure
Min.: 0 bar(0 psi)Max.: 20 bar(290.08 psi)
Flow rate
Min.: 0 l/min(0 us gal/min)Max.: 60 l/min(15.9 us gal/min)
DN
0.375 in, 0.5 in
