نام محصول:
دریچه کنترل جهت هیدرولیک مدولار
نام انگلیسی:

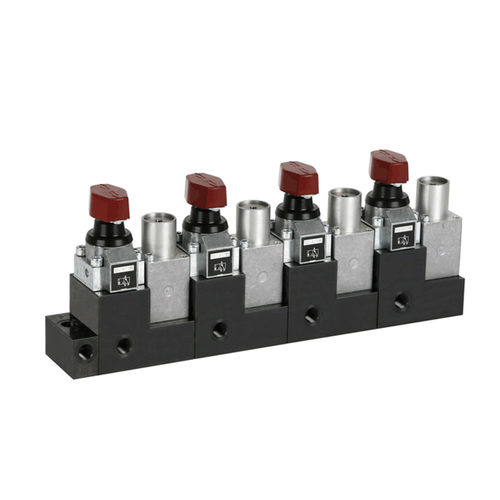

Modular hydraulic directional control valve C2.345 series
برند:
Römheld GmbH Friedrichshütte
مشخصات:
manually operated
single and double acting
max. operating pressure 500 bar
Single-acting versions
These directional control valve combinations are particularly suited for operating of individual clamping points in multiple clamping systems.
Double-acting versions
These valve combinations can be used to operate double-acting cylinders. A 3/2 directional control valve and an intermediate valve plate are operated by a turning knob so that the double-acting function is obtained. The design of the mounting plates allows the combination with single-acting units.
توضیحات:
Type
poppet
Actuating method
manual
Ports/positions
3/2-way
Other characteristics
modular
Operating pressure
Max.: 500 bar(7,251.89 psi)Min.: 0 bar(0 psi)
Flow rate
8 l/min(2.1 us gal/min)
