نام محصول:
دریچه کنترل جریان
نام انگلیسی:

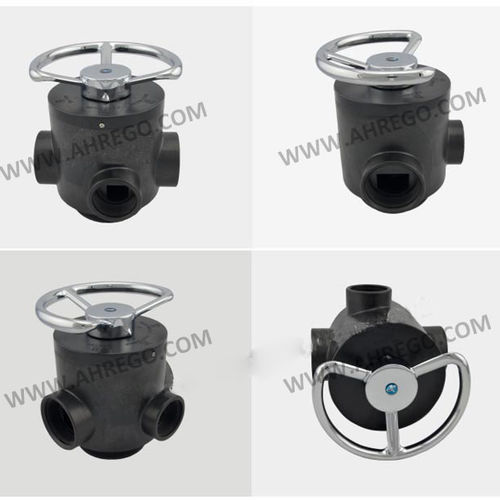

Flow control valve F56D1
برند:
Anhui Koyo Rego Machinery Technology Co., Ltd.
مشخصات:
Technical Parameters：
●Water Pressure———————————————-0.15—0.6MPa
●Water Temperature—————————————–5℃-50℃
●Water Turbidity———————————————–＜20FTU
●Inlet/Outlet—————————————————–2″F
●Drain————————————————————1.5″F
●Base————————————————————-4″-8UN
●Riser Pipe——————————————————1.5″D-GB
●Max Flow Rate————————————————-10 m3/h
●Suitable Tank Size (in)————————————— 10″～24″
Product Characteristics：
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
■It can be changed to be side-mounted valve with side-mounted connector.
■It can operate under pressure, without leakage.
Range of Application：
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
توضیحات:
Function
flow control
Media
for water
Applications
for tank
Other characteristics
corrosion-resistant
Pressure
Max.: 600,000 Pa(87 psi)Min.: 150,000 Pa(21.8 psi)
Temperature
Max.: 50 °C(122 °F)Min.: 5 °C(41 °F)
Flow rate
10 m³/h(353.15 ft³/h)
