نام محصول:
دریچه کشویی
نام انگلیسی:
Sliding gate valve 8231
برند:
Schubert & Salzer Control Systems GmbH
مشخصات:

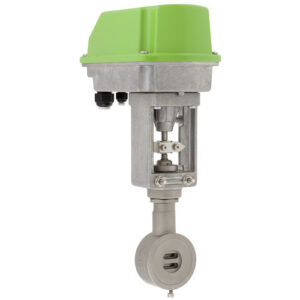

This compact motor valve is used in a wide range of process engineering control tasks. It is particularly characterised by its very short design. Most media such as steam, fluids, gases, etc. can be excellently controlled with it. This inexpensive version represents a real alternative to pneumatic actuators.
•Size:
DN15 – DN125
•Pressure:
PN 10/40
•Material:
Stainless steel 1.4408
Carbon steel 1.0619
•Temperature:
Media temperature: -60 °C up to 230 °C
Special versions available on request.
Connection:
Wafer type design
Accessories:
Position electronics
Analog stroke feedback
Limit switch
Fail safe feature
Actuator:
Control actuators or 3-point actuators
Control force: 800 N
Motor voltages: 24 V AC/DC, 230 V, 110/120 V
Class of protection: IP 65
Control: 3-point; 2-10 V; 4-20 mA
توضیحات:
Type
sliding gate
Operation
electrically-operated
Function
shut-off, regulating
Media
for hot water, for cooling water, for gas, for air, for steam, for natural gas, for CO2, propane
Body
wafer, stainless steel, carbon steel
Applications
for industrial applications, for the chemical industry, for the food industry, for wafers
Other characteristics
compact, for aggressive media
DN
Max.: 125 mm(4.921 in)Min.: 15 mm(0.591 in)
Pressure
Max.: 40 bar(580.2 psi)Min.: 10 bar(145 psi)
Temperature
Max.: 230 °C(446 °F)Min.: -60 °C(-76 °F)
