نام محصول:
دریچه کره
نام انگلیسی:

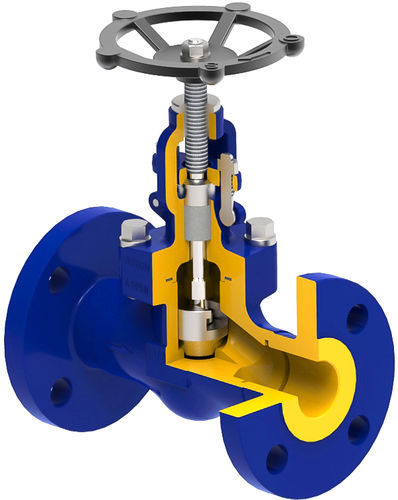

Globe valve zGLO 208
برند:
ZETKAMA Sp. z o.o.
مشخصات:
high tightness (leakprooftightness class A according to EN – 12266 – 1)
environment friendly
tests according to API 598 or EN 12266-1
installation length according to DIN 3202 for classes according to ANSI B16.10
according to EN 558 PN 40 – series 1 for DN 15-32
PN 100- series 28 for DN 15-32
flange connections according to ASME B16.5 or PN-EN 1092-1
توضیحات:
Type
globe
Operation
with handwheel
Function
stop
Media
for water, for steam, for compressed air
Body$
flange
Applications
chemical, for heating, for the petroleum industry, for shipbuilding
Material$
forged steel
Other characteristics
DIN, ANSI, compact
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
20 bar, 50 bar, 100 bar(290.1 psi, 725.2 psi, 1,450.4 psi)
Temperature
Min.: -29 °C(-20 °F)Max.: 425 °C(797 °F)
