نام محصول:
دریچه کره
نام انگلیسی:

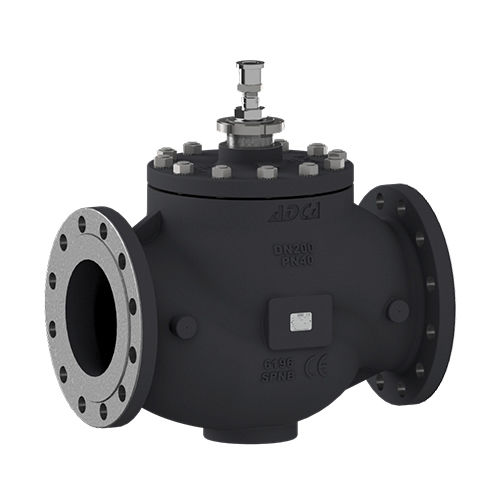

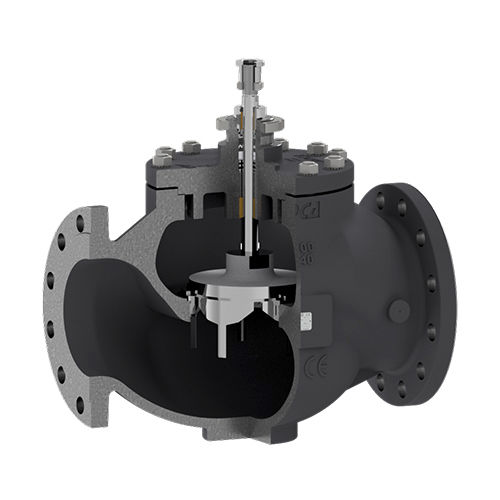

Globe valve V25/2
برند:
VALSTEAM ADCA Engineering S.A.
مشخصات:
The ADCATrol V25/2 is a series of single-seated, two-way globe valves designed for process engineering and industrial applications, where events such as erosion, cavitation or flashing may occur.
These valves can be assembled with pneumatic, hydraulic or electric actuators, for modulating and shut-off control tasks.
MATERIAL:
SG iron, carbon steel or stainless steel
EN/SIZES:
DN 15 to DN 200
ASME/SIZES:
DN 15 to DN 150
EN/CONNECTIONS:
Flanged EN 1092-2 PN 16
Flanged EN 1092-1 PN 16 or PN 40
ASME/CONNECTIONS:
Flanged ASME B16.5 Class 150 or 300
توضیحات:
Type
globe
Operation
pneumatic, electric, hydraulic
Function
for control, shut-off
Applications
for industrial applications
Material$
stainless steel, SG iron, carbon steel
Number of channels
2-way
Other characteristics
modulating
DN
Min.: 15 mm(0.591 in)Max.: 200 mm(7.874 in)
Pressure
40 bar(580.2 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 400 °C(752 °F)
Flow rate
Min.: 0.1 m³/h(3.53 ft³/h)Max.: 630 m³/h(22,248.24 ft³/h)
