نام محصول:
دریچه کره
نام انگلیسی:

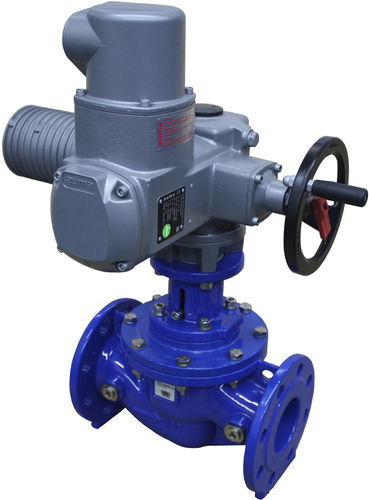

Globe valve DURA
برند:
VAG-Group
مشخصات:
Externally controlled control valve for the regulation of the pressure and flow rate in service areas with external power supply. The control characteristic can be adapted to the operating conditions by means of a finely slotted cylinder serving as control insert. Suitable for use in water treatment, water distribution, in power plants, in industry and in pressure management.
Face-to-face length: acc. to EN 558, basic series 1
With flange ends on both sides acc. to EN 1092-2
Control valve in globe valve design
With rising stem
With position indicator
With handwheel
Slotted cylinder as standard control insert for cavitation-free regulation
Low actuating torque due to pressure balanced compensation cylinder
Compensation cylinder sealed with a quad ring
Chambered and pull-out proof profiled sealing ring
Welded valve seat enhances resistance to wear
توضیحات:
Type
globe
Operation
with handwheel
Function
flow control, distribution, pressure-control, flow regulator
Media
for water
Body$
flange, seat, welded
Applications
industrial, for water systems, power line
Material$
stainless steel, cast iron
Other characteristics
rising stem
DN
Min.: 50 mm(1.969 in)Max.: 200 mm(7.874 in)
Pressure
10 bar, 16 bar, 25 bar(145 psi, 232.1 psi, 362.6 psi)
