نام محصول:
دریچه کره
نام انگلیسی:

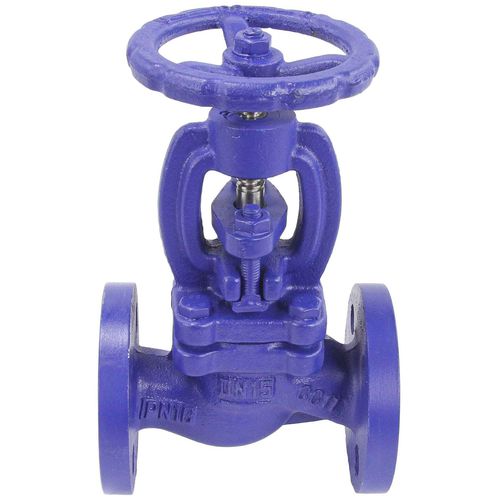

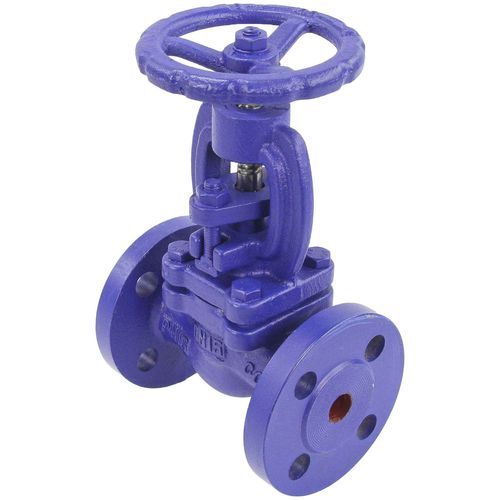

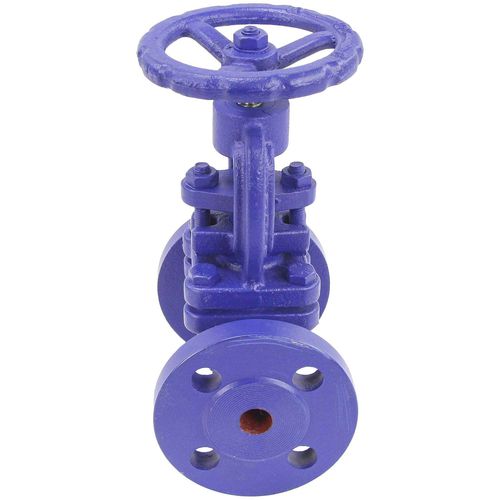

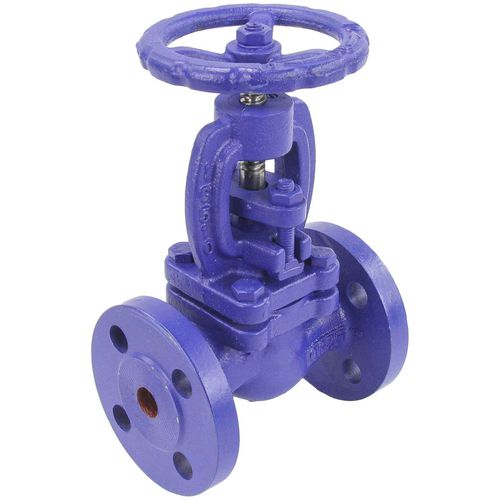

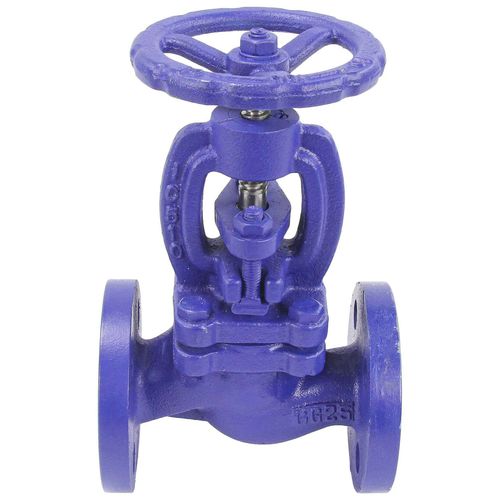

Globe valve D090-00693
برند:
SIMPLE VALVE, S.L.
مشخصات:
Bellow sealed stop valve Elephant 215A is designed for installation as a shut-off device on pipelines. Operating principle: When the flywheel rotates clockwise or counterclockwise, the rotational motion is transmitted to the spindle, and the spool attached to it closes or opens the passage hole in the housing. WARNING: The use of shut-off valves as control valves is prohibited.
توضیحات:
Type
globe
Operation
with handwheel
Function
shut-off
Media
for water, for oil, for air
Body$
flange
Applications
for pipelines, for heating
Material$
steel, cast iron
Other characteristics
with bellows seal
DN
Min.: 0.5 inMax.: 4 in
Pressure
16 bar(232.1 psi)
